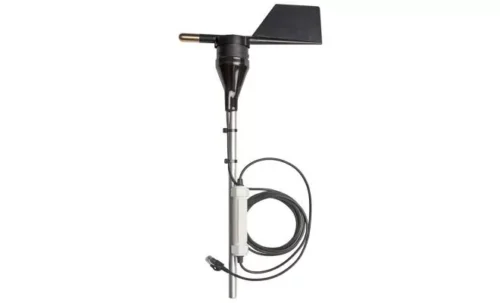

HOBO Wind Direction Smart Sensor

HOBO Wind Direction Smart Sensor

Jika anda berminat untuk membeli alat Wind Direction Smart Sensor yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: Brand:

Overview

Sensor plug-and-play kelas penelitian yang memberikan arah angin rata-rata untuk interval pengukuran. Baling-baling angin yang sangat tahan lama ini memiliki drip overhang untuk anti es. Bantalan bola baja tahan karat berpelindung dan rumah penghilang statis memberikan masa pakai sensor yang lama. Sensor menghitung rata-rata vektor satuan dari arah angin, membe

Features

  • Research-grade plug-and-play sensor for measuring and logging wind direction data
  • Highly-durable wind vane has a drip overhang for anti-icing
  • Shielded stainless-steel ball bearings

Spesifikasi

pecifications Wind Direction
Measurement Range 0 to 355 degrees, 5 degree dead band
Maximum Wind Speed Survival 67 m/sec (150 mph)
Accuracy ± 5 degrees
Resolution 1.4 degrees
Starting Threshold 1.0 m/s (2.2 mph)
Measurement Definition Unit vector components of wind direction are accumulated every three seconds for duration of logging interval. Average direction is calculated from the average of these.
Operating Temperature Range -40°C to +70°C (-40°F to +158°F)
Environmental Rating Weatherproof
Service Life 4 to 6 years typical depending upon environmental conditions
Housing Injection-molded housing and vane, static dissipating base, lead-free silicon bronze nose, and aluminum mounting rod.
Bearing Type two shielded stainless steel ball bearings
Turning Radius Approximately 13.5 cm (5.25 in.)
Dimensions 46 x 20 cm (18 x 8.5 in) including 1.27 cm (0.5 in) diameter mounting rod, 2.5 mm (0.1 in) drip overhang
Weight Approximately 370 g (13 oz)
Number of Data Channels 1
Measurement Averaging Option Automatic averaging (see Measurement Definition)
Cable Length Available 3.5 m (11.5 ft)
Length of Smart Sensor Network Cable 0.5 m (1.6 ft)
CE The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
Part Number S-WDA-M003

A single HOBO Weather Station logger can accommodate 15 data channels and up to 100 m (325 ft) of smart sensor cable (the digital communications portion of the sensor cables).
