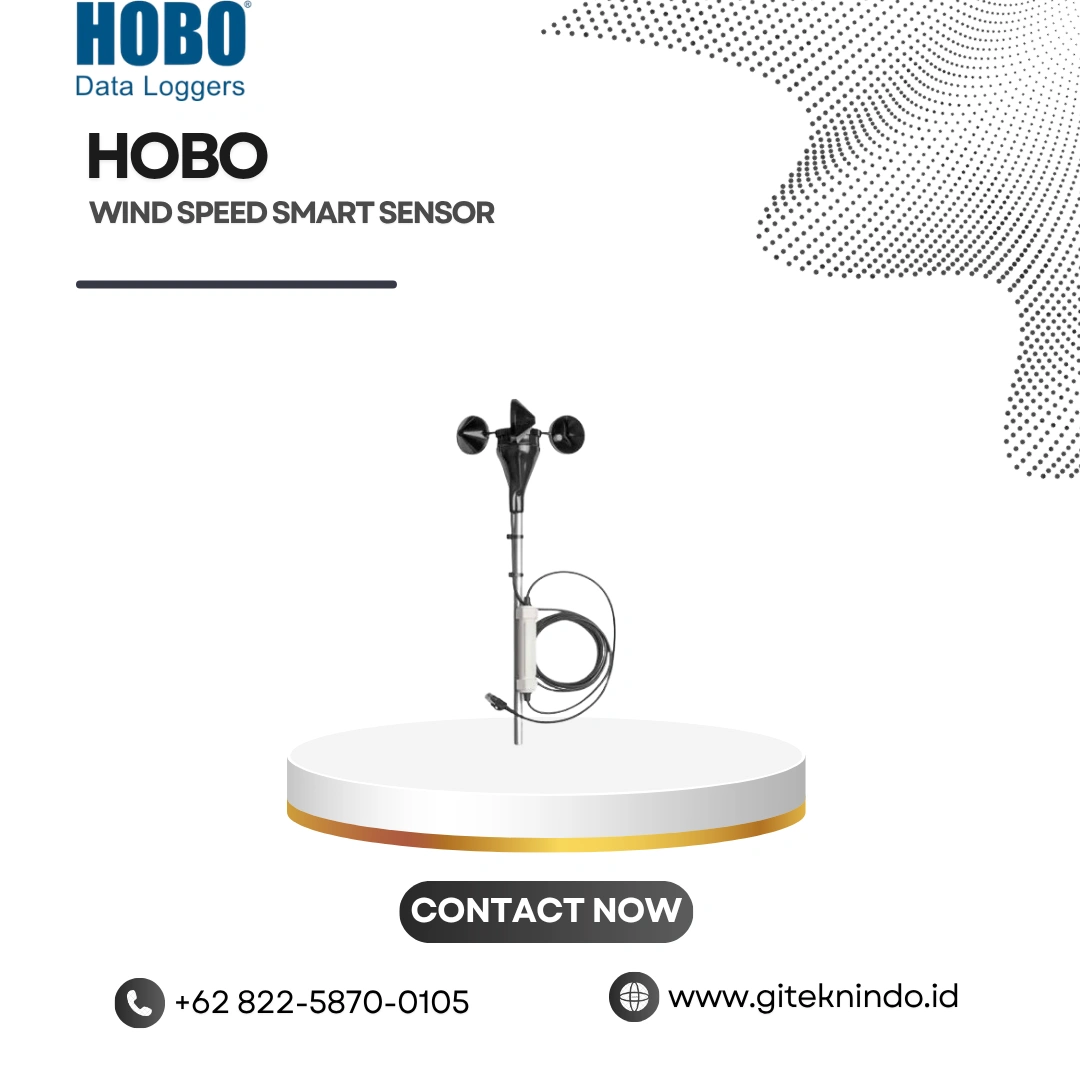

HOBO Wind Speed Smart Sensor

Jika anda berminat untuk membeli alat HOBOnet Wind Speed and Direction Sensor yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: , , , , , , ,

Deskripsi

Overview

Mengukur kecepatan angin dari 0 hingga 76 m/s (0 hingga 170 mph). Sensor ini menyediakan data yang melaporkan kecepatan angin rata-rata dan hembusan 3 detik tertinggi untuk setiap interval pencatatan. Ambang batas awal adalah 1 m/s (2,2 mph); sensor dapat bertahan hingga 170 mph. Model ini dilengkapi dengan kabel 3m.

CATATAN: Lengan Silang Penuh M-CAA atau Lengan Silang Setengah M-CAB diperlukan untuk pemasangan.

Features

  • 3 cup anemometer with TEFLON® bearings and hardened beryllium shaft
  • Measure wind speed from 0 to 76 m/s (0 to 170 mph)
  • 170 mph survivability

Spesifikasi

Measurement parameters: average wind speed and highest 3 second gust in logging interval
Measurement range: 0 to 76 m/s (0 to 170 mph)
Operating temperature range: -40° to 75°C (-40° to 167°F)
Accuracy: ±1.1m/s (2.4 mph) or ±4% of reading whichever is greater
Resolution: 0.5 m/s (1.1 mph)
Starting threshold: 1 m/s (2.2 mph)
Maximum wind speed survival: 76 m/s (170 mph)
Distance constant: 3 meters
Housing: 3 cup anemometer with TEFLON® bearings and hardened beryllium shaft
Dimensions: 190 cm x 51 cm (7.5" x 3.2")
Approximate weight: 300 g (10 oz)
Cable length: 3 meter (10')
Length of Smart Sensor Network Cable: 0.5m
Service life: greater than 5 year life typical
Note: Cross arm recommended or pole mount (2 hose clamps required for pole mount)The CE marking identifies this product as complying with all relevant directives in the European Union (EU). To minimize measurement errors due to ambient RF, use the shortest possible probe cable length and keep the probe cable as far as possible from other cables.
