Deskripsi

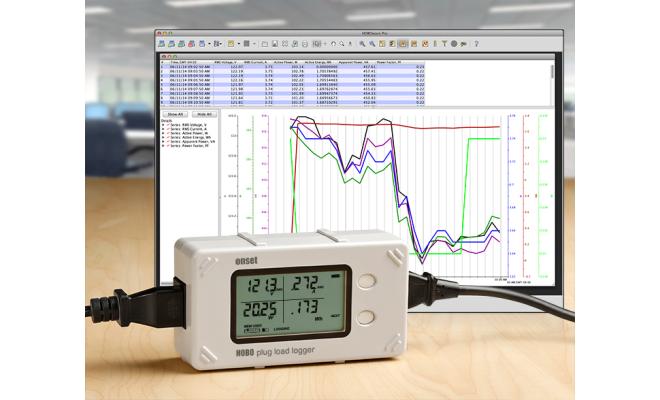

HOBO UX120-018 for ac current and voltage data logger with display.
Pencatat data (data logger) digital dengan akurasi tinggi dan mudah digunakan dari HOBO mengukur dan merekam konsumsi daya serta energi beban listrik 120V dari peralatan kantor, mesin penjual otomatis, dan perangkat lainnya. Perangkat-perangkat ini cukup dicolokkan ke pencatat data, dan alat tersebut akan merekam semua parameter daya utama.
Data logger ini memiliki sertifikat UL yang memberikan akurasi pengukuran 0,5% dengan resolusi pengukuran 1 watt, menjadikannya pilihan ideal untuk audit bangunan yang membutuhkan data penggunaan energi yang terperinci. Casing yang kokoh dirancang untuk tahan terhadap kerasnya penanganan di dunia nyata, memberikan kinerja yang andal meskipun terjadi benturan, jatuh, dan penggunaan di bawah meja.
Fitur Unggulan
Tidak Perlu Sumber Daya Listrik
- Akurasi Pengukuran 0,5%: Memungkinkan data energi beban listrik yang lebih andal.

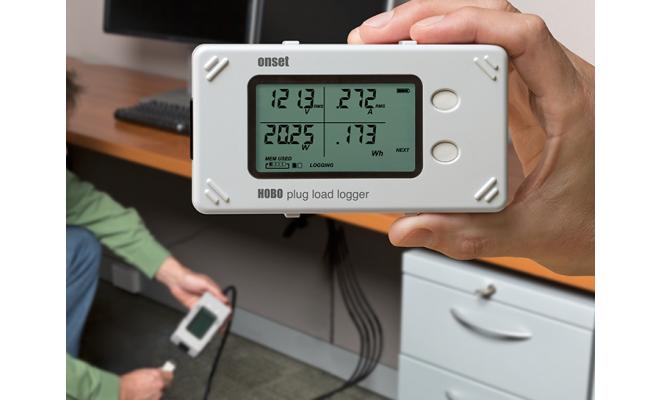

- "Meter Mode" (Mode Meter): Menyediakan tampilan instan variabel beban listrik secara real-time.
- Data Beban Tercatat Waktu dan Total: Memberikan data beban dengan cap waktu dan total untuk analisis energi yang terperinci.
- Memori Besar: Memungkinkan interval pencatatan yang lebih cepat untuk profil beban listrik yang lebih komprehensif.
- Baterai Cadangan: Memastikan data yang dicatat tetap utuh jika terjadi pemadaman listrik atau kegagalan beban.
- Layar LCD Berfitur Lengkap: Menyediakan diagnostik visual untuk pemasangan yang mudah.
- Kompatibel dengan Perangkat Lunak HOBOware dan HOBOware Pro: Untuk pengaturan pencatat data serta pembuatan grafik & analisis.
Spesifikasi
Note: The UX120-018 logger is intended for use on 15 AMP circuits (NEMA 5-15P) with a working voltage of 120V AC ±10% at 50/60Hz and a max power of 1800W.
- Indoor use only
- Insulation category 2
Maximum Current: 15 Amps
| RMS Voltage Accuracy: | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle |
| RMS Current Accuracy: | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle |
| Active Power Accuracy: | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle |
| Active Energy Accuracy: | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle |
| Power Factor Accuracy: | ±0.02 |
| Drift: | Up to 0.5% typical within 1 year |
| Resolution: | | Volts, rms | 10mV | | Amps, rms | 0.1mA | | Active Power | 10mW down to 1 watt loads @ 120VAC | | Active Energy | 10mW | | Apparent Power | 10mVA | | Power Factor | 0.01 PF |
|
| Operating Environment: | Logging: 5° to 40°C (41° to 104°F); 0 to 95% RH (non-condensing), up to 2,000 m (6,562 ft) altitude |
| Operating Modes: | Meter or logging when launched with HOBOware |
| Logging Rate: | 1 second to 18 hours, 12 minutes, 15 seconds |
| Statistics Sampling Rate: | 60 Hz or 16.67 mS single-cycle |
| Memory Modes: | Wrap when full or stop when full |
| Start Modes: | Immediate, push button, date & time, or next interval |
| Stop Modes: | When memory full, push button, or date & time |
| Restart Mode: | Push button |
| Time Accuracy: | ±1 minute per month at 25°C (77°F), see Plot A |
| Power Source: | Line-powered with 0.92 m (3 ft) AC power cord or two AAA 1.5 V alkaline batteries, user replaceable |
| Battery Life: | 2 years with line power; 6 months battery only (no line power) with logging rate of 1 minute or greater operating at 25°C (77°F) |
| Memory: | 4 MB (1.4 million measurements, maximum) |
| Download Type: | USB 2.0 interface |
| Full Memory Download Time: | Approximately 1.5 minutes |
| LCD: | LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
| Size: | 13.97 x 7.62 x 4.75 cm (5.5 x 3 x 1.87 in.) |
| Weight: | 230.8 g (8.14 oz) |
| Ratings: | IP50;UL Listed; UL Listed to Canadian safety standards |
| Calibration: | This device has been calibrated using equipment that has been tested in accordance with ANSI C12.20 0.5%. |
| |
