Jika anda berminat untuk membeli alat Holykell HPT200 Universal Industrial Pressure Sensor yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :
PT. Global Intan Teknindo

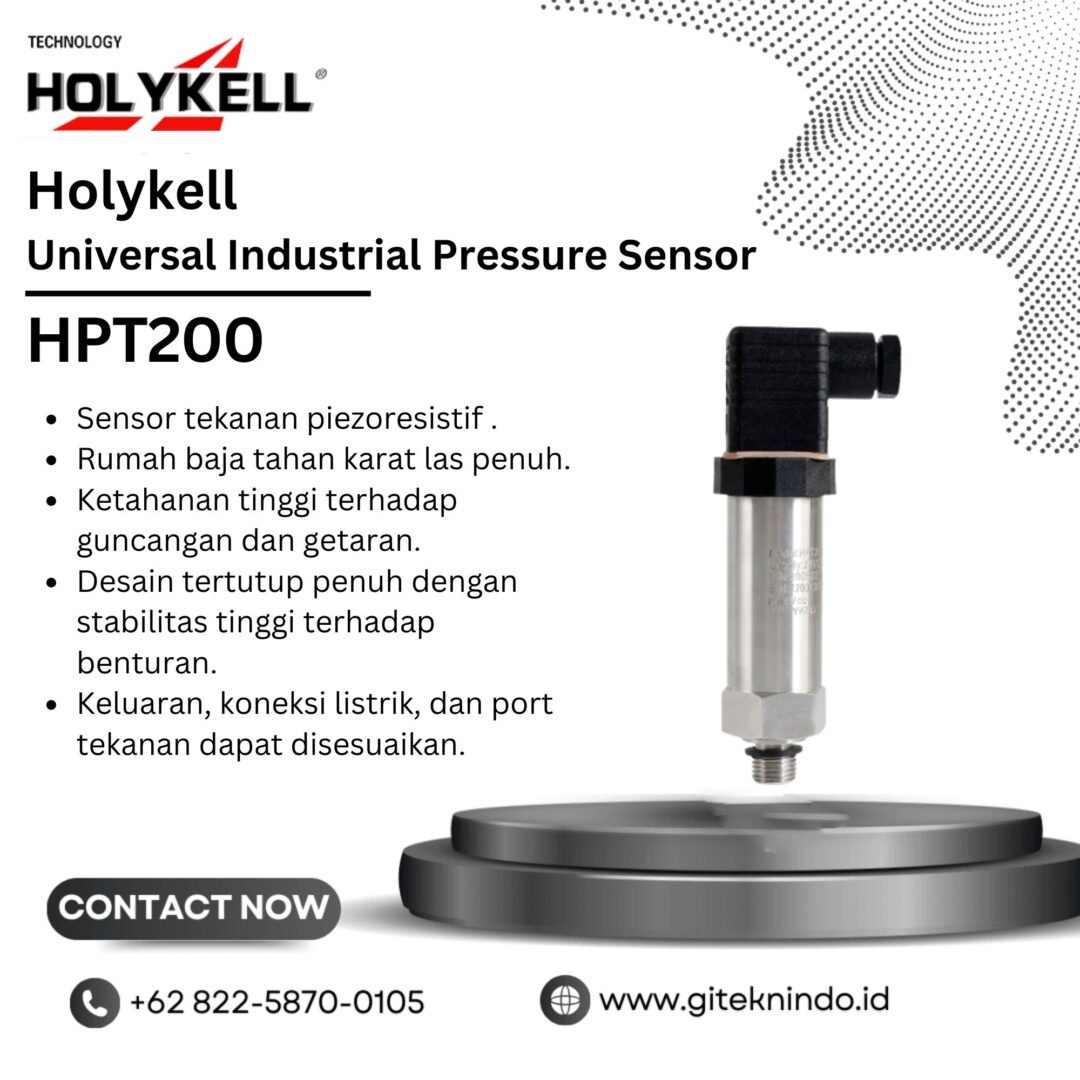

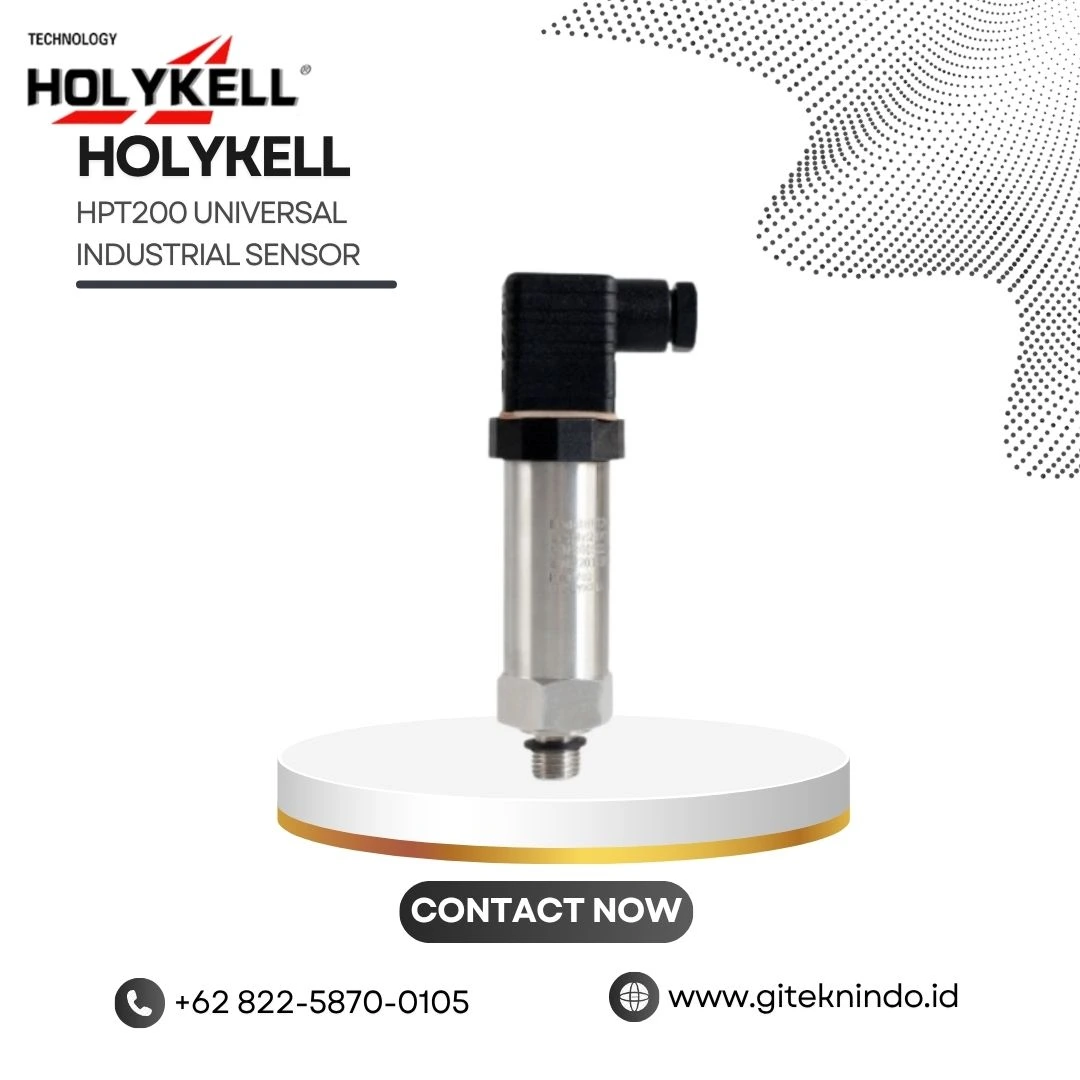

Holykell Universal Industrial Pressure Sensor menggunakan sensor tekanan piezoresistif dengan rentang pengukuran yang berkualitas tinggi. Perangkat ini dilengkapi dengan lapisan baja tahan karat 316L yang dilas penuh, serta memiliki ketahanan tinggi terhadap guncangan, getaran, dan perlindungan dari gelombang EMI/RFI. Sensor ini mendukung berbagai jenis koneksi, termasuk Hirschmann, kabel langsung, dan antarmuka M12*4 Pin, serta memiliki beragam pilihan sinyal output.
| Parameter | HPT200-H/C8/C5 |
| Pressure Range | Gauge /Absolute/Sealed gauge/Negative pressure optional |
| Safe Overload | 200% F.S. |
| Burst Pressure | 500% F.S. |
| Accuracy | ≤ ±0.25%F.S,≤ ±0.1%F.S (by customized) |
| Long Stability | 0.1%F.S/Year |
| Working Temp | -20℃~80℃(corrosive medium); -40℃~80℃(non-corrosive medium) |
| Storage Temp | -40℃~125℃(Nitrile rubber sealing ring); -30℃~150℃(fluororubber rubber sealing ring) |
| Medium Compatible | Compatible with 316L |
| Output | 4~20mA , 0~5V, Double 4-20mA,4-20mA+HART,RS485… |
| Power Supply | 7~30V,8~30Vdc,12~30Vdc |
| Body material | 316L stainless steel |
| Material of diaphragm | 316L Stainless steel |
| Filling oil | Silicon oil (Typical); Fluorocarbon oil (Oxygen Services, by customized) |
| Electronic connection | DIN43650 Hirschmann Connector 4 Pin Type Direct cable outlet type |
| Pressure connect port | G1/4’’male, G1/2’’male, 1/8’’NPT male, 1/4’‘NPT male, 1/2’‘NPT male and female optional(by customized) |
| Water Proof | IP65- IP67 |
| Response time | ≤10ms |
| Options | Temperature Range by customized, Maximal range: -40…+100 °C Oil Filling Fluorocarbon oil (O2-compatible), olive-oil, lowest temperature oil (-55 °C) withstand Xylene medium pressure and level application (customized) |
