Jika anda berminat untuk membeli alat Holykell HPT200-EX Explosion Proof Pressure Sensor yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui:
PT. Global Intan Teknindo

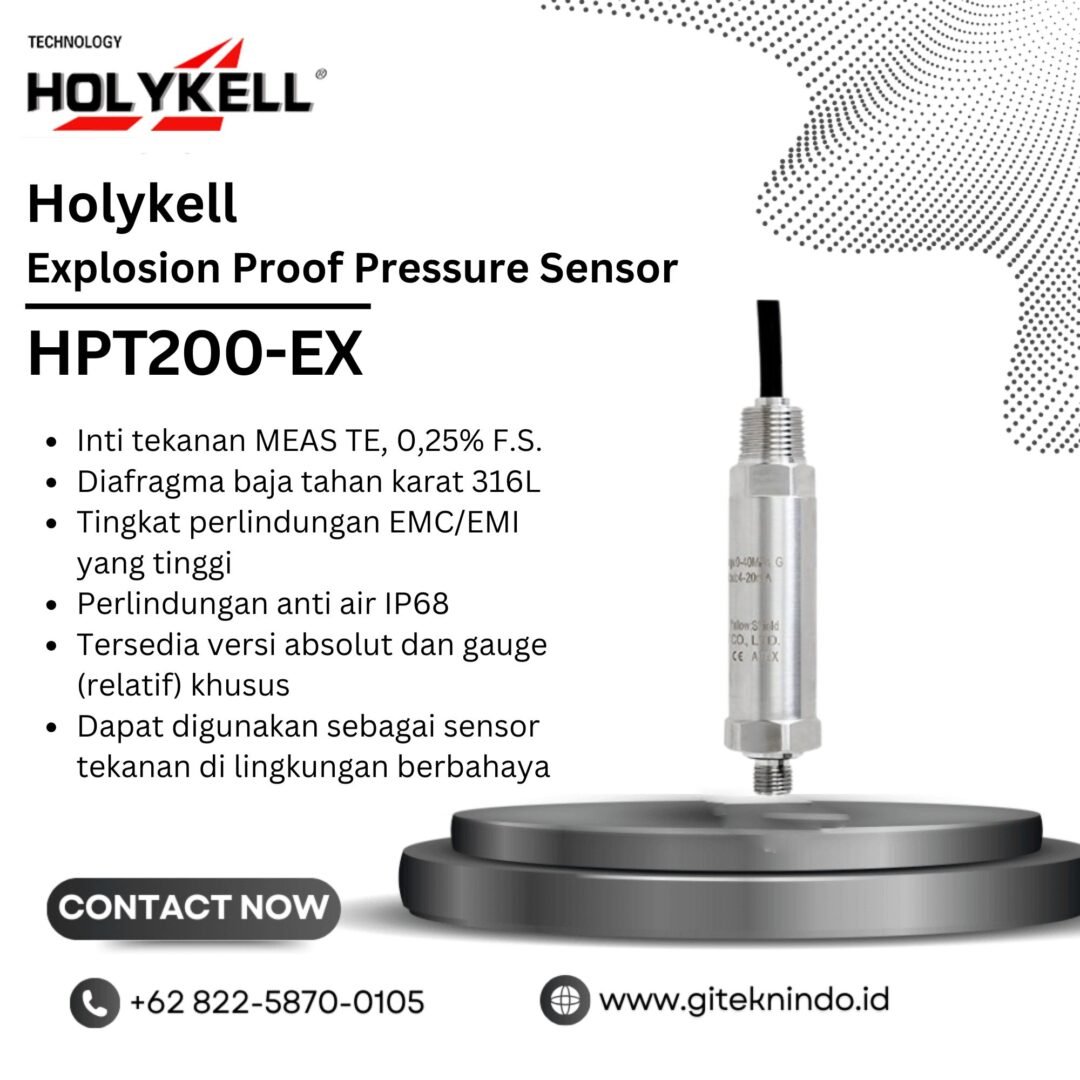

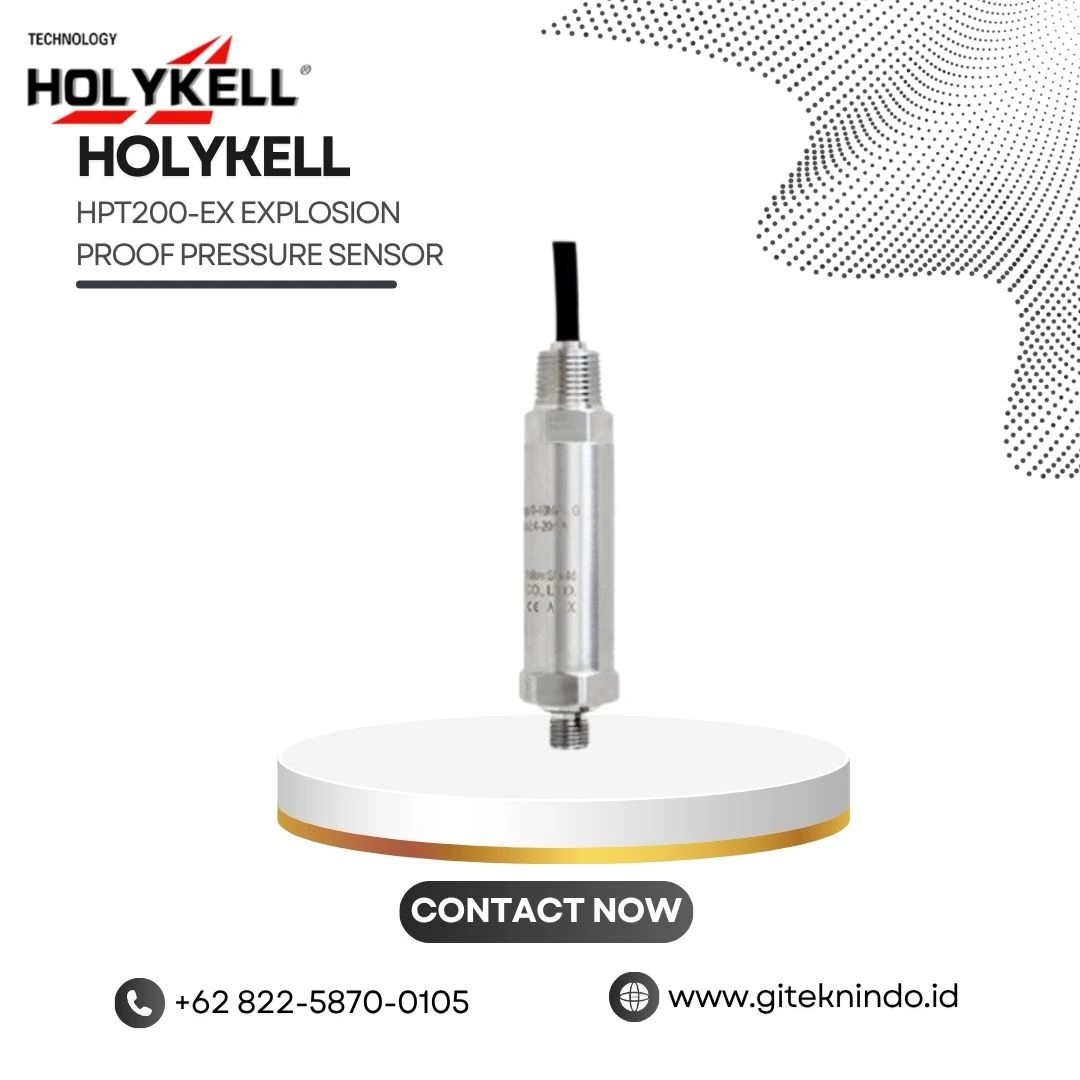

Holykell Explosion Proof Pressure Sensor dirancang untuk digunakan sebagai sensor tekanan di lingkungan berbahaya. Alat ini menawarkan pengukuran tekanan yang andal, khususnya untuk memenuhi tuntutan tinggi pada aplikasi industri minyak dan gas.
| Pressure Range | Gauge /Absolute / Negative pressure optional |
| Accuracy | 0.5%F.S.(Typical)
0.25%F.S. 0.1%F.S. (by customized) |
| Long Stability | ≤ ±0.1%F.S. of span/year |
| Working Temp | -20℃~80℃(corrosive medium),-40℃~80℃(non-corrosive medium);
-40~250℃ by customized |
| Medium Compatible | Compatible with 316L Stainless Steel |
| Output | 4~20mA,0-5V,0-10V,0.5-4.5V,RS485 MODBUS RTU… |
| Power Supply | 7~30Vdc,8~30Vdc,13~30Vdc,5Vdc… |
| Pressure connection port | G1/4″male, G1/2″male, 1/4″NPT male, 1/2″NPT male optional. |
| Electronic connection | 1/2″NPT male thread with outlet cable |
| Explosion-proof rating | Ex ia IIC T6 Ga |
| Certificate | CE RoHS ATEX |
| IP rating | IP68 |
| Response time | ≤10ms |
| Options | Customize oil filling fluorocarbon oil (O2-compatible), olive-oil,
lowest temperature oil (-55°C) Pressure Connection, electrical connection on request. withstand Xylene medium pressure and level application(customized) |
