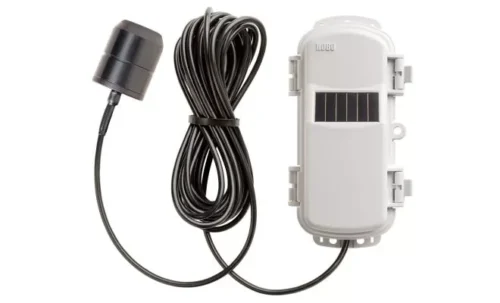

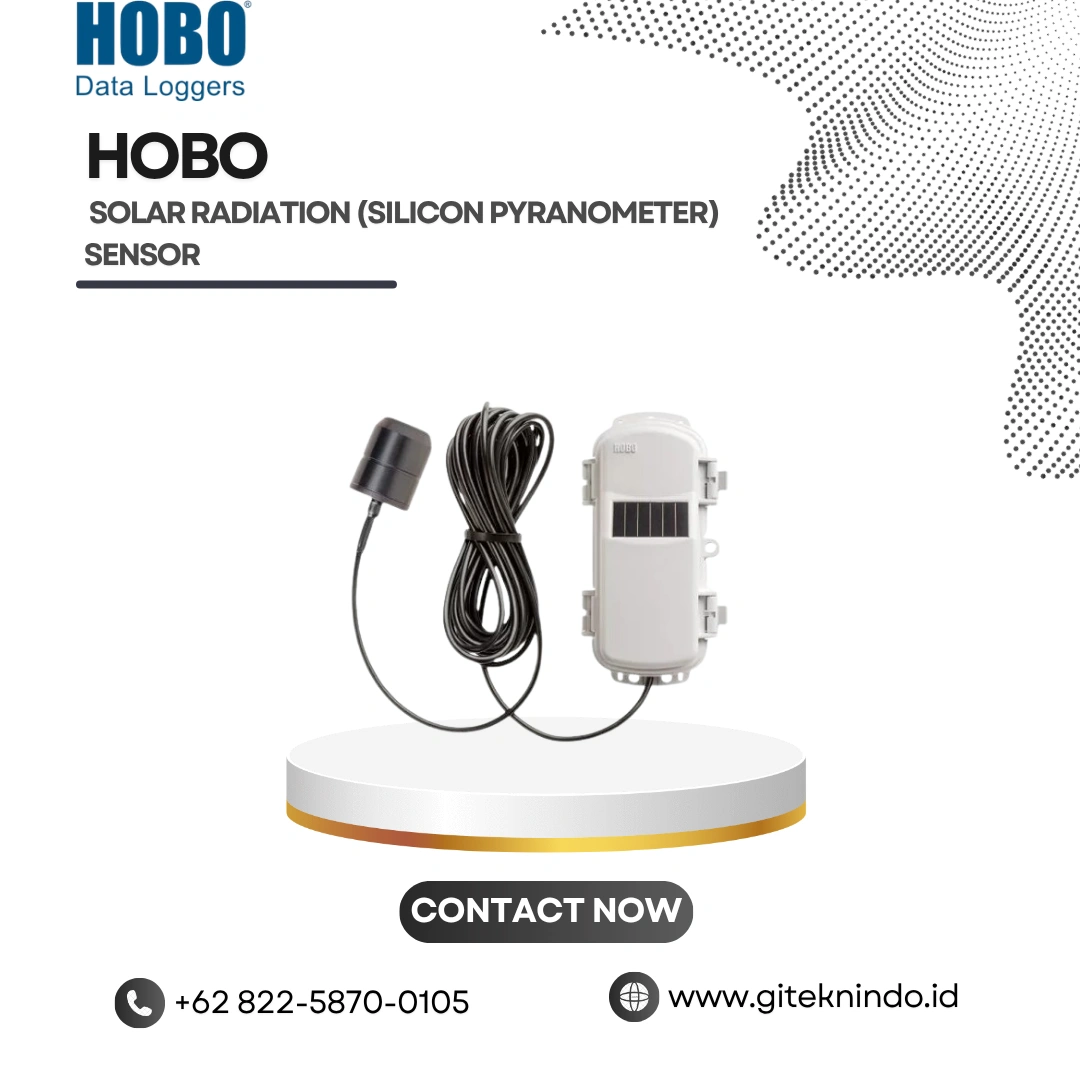

HOBOnet Solar Radiation (Silicon Pyranometer) Sensor

HOBOnet Solar Radiation (Silicon Pyranometer) Sensor

Jika anda berminat untuk membeli alat HOBOnet Solar Radiation (Silicon Pyranometer) Sensor yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: Tag: Brand:

Overview

Mengukur intensitas cahaya untuk frekuensi yang relevan dengan radiasi matahari. Sensor nirkabel HOBOnet mengkomunikasikan data secara langsung ke HOBO RX3000 atau stasiun HOBO MicroRX atau meneruskan data melalui sensor nirkabel lainnya kembali ke stasiun pusat. Sensor-sensor ini telah dikonfigurasikan sebelumnya dan siap digunakan, dan data diakses melalui HOBOlink, platform perangkat lunak berbasis cloud inovatif dari Onset.

Features

Sensor Features

  • Measurement range of 0 to 1280 W/m2 over a spectral range of 300 to 1100 nm
  • Enclosed in an anodized aluminum housing with acrylic diffuser and O-ring seal

Wireless Features

  • 900 MHz wireless mesh self-healing technology
  • 450 to 600 meter (1,500 to 2,000 feet) wireless range and up to five hops
  • Up to 50 wireless sensors or 336 data channels per HOBO RX station
  • Simple button-push to join the HOBOnet wireless network
  • Onboard memory to ensure no data loss
  • Powered by rechargeable AA batteries and built-in solar panel

Spesifikasi

Measurement Range 0 to 1280 W/m2
Spectral Range 300 to 1100 nm
Accuracy Typically within ±10 W/m2 or ±5%, whichever is greater in sunlight; Additional temperature induced error ±0.38 W/m2/°C from 25°C (0.21 W/m2/°F from 77°F)
Angular Accuracy Cosine corrected 0 to 80 degrees from vertical (see Plot B); Azimuth Error <±2% error at 45 degrees from vertical, 360 degree rotation
Resolution 1.25 W/m2
Drift <±2% per year

Wireless Mote
Operating Temperature Range -25° to 60°C (-13° to 140°F) with rechargeable batteries
-40 to 70°C (-40 to 158°F) with lithium batteries
Radio Power 12.6 mW (+11 dBm) non-adjustable
Transmission Range Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high
Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) high
Wireless Data Standard IEEE 802.15.4
Radio Operating Frequencies RXW-LIB-900: 904–924 MHz
RXW-LIB-868: 866.5 MHz
RXW-LIB-922: 916–924 MHz
RXW-LIB-921: 921 MHz
Modulation Employed OQPSK (Offset Quadrature Phase Shift Keying)
Data Rate Up to 250 kbps, non-adjustable
Duty Cycle <1%
Maximum Number of Motes Up to 50 wireless sensors or 336 data channels per one HOBO RX station
Logging Rate 1 minute to 18 hours
Number of Data Channels 2
Battery Type/ Power Source Two AA 1.2V rechargeable NiMH batteries, powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40 to 70°C (-40 to 158°F)
Battery Life With NiMH batteries: Typical 3–5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F) and positioned toward the sun (see Deployment and Mounting), operation outside this range will reduce the battery service life
With lithium batteries: 1 year, typical use
Memory 16 MB
Dimensions Sensor: 4.1 cm height x 3.2 cm diameter (1.61 x 1.26 inches)
Cable length: 2 m (6.56 ft)
Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)
Weight Sensor and cable: 109 g (3.85 oz)
Mote: 223 g (7.87 oz)
Materials Sensor: Anodized aluminum housing with acrylic diffuser and O-ring seal
Mote: PCPBT, silicone rubber seal
Environmental Rating Sensor: Weatherproof
Mote: IP67, NEMA 6
Compliance Marks



FCC Logo



RXW-LIB-900

ce



RXW-LIB-868

Australia/New Zealand General Compliance mark



RXW-LIB-922
Taiwan NCC MarkRXW-LIB-921

Download Katalog
