HOBO Wind Speed and Direction Set Smart Sensor

HOBO Wind Speed and Direction Set Smart Sensor

Jika anda berminat untuk membeli alat Wind Speed and Direction Set Smart Sensor Sensor yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: , , , , , , , Tag:

Deskripsi

Overview

Termasuk Sensor Cerdas Kecepatan Angin plug-and-play kelas riset Onset dan Sensor Cerdas Arah Angin. Kombinasi ini memberikan kecepatan angin rata-rata, hembusan angin 3 detik tertinggi, dan arah angin rata-rata untuk interval pengukuran. Sensor yang tahan lama ini akan memberikan kinerja yang akurat dan andal selama bertahun-tahun.

CATATAN: Pasang ini pada M-CAA Full Cross Arm untuk jarak sensor yang tepat untuk pengukuran angin yang akurat di semua arah angin. Lengan silang harus dipasang pada tiang yang stabil, dengan menggunakan kabel pria sesuai kebutuhan untuk mencegah sensor bergetar saat angin kencang.

Features

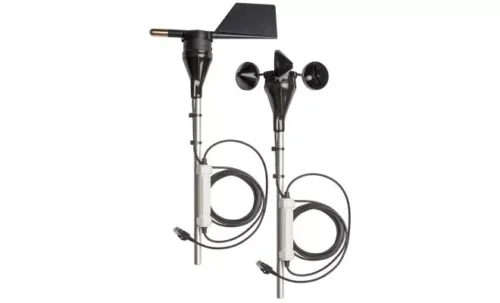

  • Wind Sensor Set includes Onset’s research-grade plug-and-play Wind Speed Smart Sensor and the Wind Direction Smart Sensor
  • Provides average wind speed, highest 3-second wind gust, and average wind direction for the measurement interval
  • Durable sensors

Spesifikasi

SpecificationsWind Speed/Gust (S-WSB-M003)Wind Direction (S-WDA-M003)
Measurement Range0 to 76 m/s (0 to 170 mph)0 to 355 degrees, 5 degree dead band
Maximum Wind Speed Survival76 m/sec (170 mph)67 m/sec (150 mph)
Accuracy± 1.1 m/s (2.4 mph) or ± 4% of reading whichever is greater± 5 degrees
Resolution0.5 m/s (1.1 mph)1.4 degrees
Starting Threshold1.0 m/s (2.2 mph)1.0 m/s (2.2 mph)
Measurement DefinitionCup revolutions are accumulated every three seconds for the duration of the logging interval. Wind speed is the average speed for the entire logging interval. Gust speed is the highest three-second wind recorded during the logging interval.Unit vector components of wind direction are accumulated every three seconds for duration of logging interval. Average direction is calculated from the average of these.
Operating Temperature Range-40°C to +75°C (-40°F to +167°F)-40°C to +70°C (-40°F to +158°F)
Environmental RatingWeatherproofWeatherproof
Service LifeGreater than 5 years typical4 to 6 years typical depending upon environmental conditions
HousingThree cup polycarbonate anemometer: Modified Teflon® bearings and hardened beryllium shaft with ice shedding designInjection-molded housing and vane, static dissipating base, lead-free silicon bronze nose, and aluminum mounting rod.
Bearing TypeModified Teflon® bearingstwo shielded stainless steel ball bearings
Turning Radius9.5 cm (3.75 in.)Approximately 13.5 cm (5.25 in.)
Dimensions41 x 16 cm (16 x 6.5 in.) including 1.27 cm (0.5 in) diameter mounting rod; 5.5 cm (2.1 in.) drip overhang46 x 20 cm (18 x 8.5 in) including 1.27 cm (0.5 in) diameter mounting rod, 2.5 mm (0.1 in) drip overhang
WeightApproximately 700 g (1.5 lbs)Approximately 370 g (13 oz)
Number of Data Channels21
Measurement Averaging OptionNoAutomatic averaging (see Measurement Definition)
Cable Length Available3.5 m (11.5 ft)3.5 m (11.5 ft)
Length of Smart Sensor Network Cable0.5 m (1.6 ft)0.5 m (1.6 ft)
CEThe CE Marking identifies this product as complying with all relevant directives in the European Union (EU)The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
Part NumberS-WSB-M003S-WDA-M003
A single HOBO Weather Station logger can accommodate 15 data channels and up to 100 m (325 ft) of smart sensor cable (the digital communications portion of the sensor cables).
