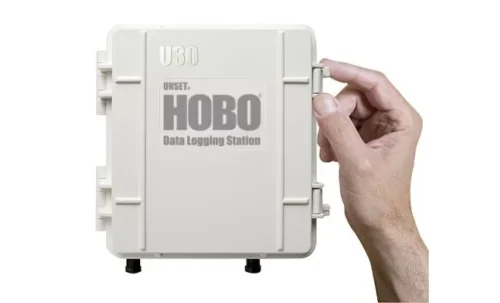

HOBO U30 USB Weather Station

HOBO U30 USB Weather Station

Jika anda berminat untuk membeli alat HOBO U30 USB Weather Station yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Tag: ,

Deskripsi

Overview

Stasiun cuaca yang tangguh untuk pemantauan lingkungan luar ruangan. Mudah dikonfigurasi untuk kebutuhan aplikasi tertentu, dengan hingga 15 saluran untuk mengumpulkan data lingkungan dan kemudian mengunggahnya ke perangkat lunak HOBOware untuk dianalisis. Perangkat lunak HOBOware Pro direkomendasikan untuk fitur yang diperluas. Stasiun ini tersedia dalam dua model: U30-NRC-000-10-S100-000 dan U30-NRC-VIA-10-S100-000, yang mencakup dua input analog.

Features

  • All electronics are housed within a rugged double-weatherproof, tamper-proof enclosure
  • Setup is quick and easy with plug-and-play sensors
  • Fast data offload via USB
  • Optional analog inputs with sensor excitation
  • Includes relay that can be activated on user-defined alarm conditions

Spesifikasi

Station

Normal Operating Range
-20 to 40°C
-4 to 104°F
Extended Operating Range
-40 to 60°C (-40 to 140°F) - see "Rechargeable Battery service Life" for impact of operations in Extended Operating Range.
Smart Sensor Connectors
10
Smart Sensor compatibility
Compatible with most Onset smart sensors, except for the S-BPA, S-TMA and S-THA
Smart Sensor Data Channels
Maximum of 15 (some sensors use more than one data channel; see sensor manual for details)
Alarm Output Relay
One relay contact closure can be configured as normally open, normally closed, or pulsed. Voltage: 30 V Current: 1 amp max.
Smart Sensor Network Cable Length
100 m maximum
328 ft maximum
Logging Interval
1 second to 18 hours
Start Modes
Immediate, at interval, push button, or delayed start
Memory Modes
Stop when full or wrap when full
Memory
512 KB nonvolatile flash data storage
Operational Indicators
Three status lights provide basic diagnostics
Time Accuracy
0 to 2 seconds for the first data point and ±5 seconds per week at 25°C (77°F)
Battery Type/Power Source
4 Volt, 10 AHr, rechargeable sealed lead-acid; external power required using one of these options: AC power adapter (AC-U30) or solar panel (SOLAR-xW)
Rechargeable Battery Service Life
Typical 3–5 years depending upon conditions of use. Operation within the extended operating range (but outside the normal range) will reduce battery service life.
Communication Type
Full speed USB via USB mini-B connector
Full Memory Download Time
4 minutes
Enclosure Access
Hinged door secured by two latches with eyelets for securing with user-supplied padlocks
Materials
Outer enclosure: Polycarbonate/PBT blend with stainless steel hinge pins and brass inserts
Inner enclosure: Polycarbonate with brass inserts
U-Bolts: Steel with zinc dichromate finish
Gaskets: Silicone rubber
Cable entry channel: EPDM rubber
Cable entry bars: Aluminum, metal thumbscrews with plastic heads
Dimensions
18.9 H x 11.8 D x 18.1 W cm
see diagrams on next page
Weight
2.2 kg
4 lbs 13 oz
Mounting
3.8 cm mast or wall mount
1.5 inch mast or wall mount
Environmental Rating
Weatherproof enclosure, tested to NEMA 6 (Requires proper installation of cable channel system)

Analog Sensor Port

Input Channels
Two, single-ended
Field Wiring
Two- or three-wire via screw terminals on detachable connector, 16–24 AWG
Replacement Detachable Connectors
Part of spares kit, Part No. A-FS-CVIA-7P-1
Input Range
User-configurable: 0–20 mA DC, 0–2.5 VDC, 0–5 VDC, 0–10 VDC, and 0–20 VDC (the voltage range is determined based on the raw values entered for the voltage scaling in HOBOware)
Minimum/Maximum Input Voltage
0 / 24 VDC
Minimum/Maximum Input Current
0 / 24 mA DC
Minimum Current Source Impedance
> 20 KΩ
Accuracy
±0.25% of FSR from 50mV to FSV
ADC Resolution
12 bits
