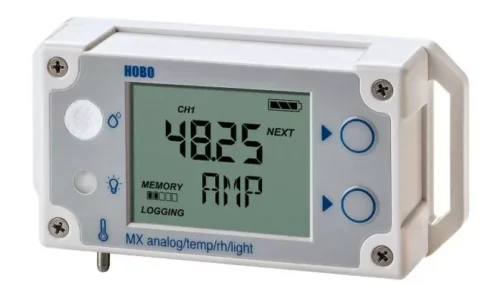

HOBO Temp/RH/Light/Ext-Analog Data Logger

HOBO Temp/RH/Light/Ext-Analog Data Logger

Jika anda berminat untuk membeli alat HOBO Temp/RH/Light/Ext-Analog Data Logger yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: , , , , , , , , , , , , , , , , , , ,

Deskripsi

Overview

Mengukur dan mentransmisikan data suhu, kelembapan relatif, dan intensitas cahaya secara nirkabel. Termasuk input analog eksternal untuk memasang berbagai sensor tambahan.

Pencatat data nirkabel mandiri, berkemampuan Bluetooth, dan nirkabel ini memungkinkan Anda menggunakan perangkat seluler atau komputer Windows dan aplikasi HOBOconnect gratis dari Onset untuk mengakses data, kapan pun, ketika berada dalam jarak 100 kaki dari pencatat. Konfigurasikan pencatat data, baca data, lihat data dalam grafik, periksa status operasional pencatat data, konfigurasikan pemberitahuan alarm, dan bagikan file data – tanpa peralatan khusus di luar perangkat seluler atau laptop.

Features

  • Bluetooth communication for wireless data offload
  • 16-bit resolution for highly-accurate measurements
  • Stores 1.9 million measurements for longer deployments between offloads
  • New Self-Describing sensors with automatic configuration for fast deployment
  • Compatible with existing sensors for a wide range of indoor monitoring
  • Audible and visual LCD-screen alarms notify you if sensor becomes unplugged or a reading exceeds set thresholds

Spesifikasi

Temperature Sensor (MX1104)
Range-20° to 70°C (-4° to 158°F)
Accuracy±0.20°C from 0° to 50°C (±0.36°F from 32° to 122°F)
Resolution0.002°C at 25°C (0.004°F at 77°F)
Drift<0.1°C (0.18°F) per year
RH Sensor* (MX1104)
Range0% to 100% at -20° to 70°C (-4° to 158°F); exposure to conditions above 95% may temporarily increase the maximum RH sensor error by an additional 1%
Accuracy±2.5% from 10% to 90% (typical) to a maximum of ±3.5% including hysteresis at 25°C (77°F); below 10% and above 90% ±5% typical
Resolution0.01%
Drift<1% per year typical
Response Time (MX1104)
Temperature11 minutes in air moving 1 m/s (2.2 mph)
RH30 seconds to 90% in airflow of 1 m/s (2.2 mph)
Light Sensor (M1104)
Range0 to 167,731 lux (15,582 lum/ft2)
Accuracy±10% typical for direct sunlight (see Light Measurement on page 4 for more details)
Logger with Cable TypeSD-MA-420 or CABLE-4-20mASD-VOLT-2.5 or CABLE-2.5-STEREOSD-VOLT-05 or CABLE- ADAP5SD-VOLT-10 or CABLE-ADAP10SD-VOLT-24 or CABLE-ADAP24
Measurement Range0 to 20.1 mA0 to 2.5 V0 to 5.0 V0 to 10 V0 to 24 V
Accuracy±0.001 mA ±0.2% of reading±0.1 mV ±0.1% of reading±0.2 mV ±0.3% of reading±0.4 mV ±0.3% of reading±1.0 mV ±0.3% of reading
Resolution0.3 µA40 µV80 µV160 µV384 µV
Logger
Operating Range-20° to 70°C (-4° to 158°F)
Radio Power1 mW (0 dBm)
Transmission RangeApproximately 30.5 m (100 ft) line-of-sight
Wireless Data StandardBluetooth Low Energy (Bluetooth Smart)
Logging Rate1 second to 18 hours
Logging ModesFixed interval (normal, statistics) or burst
Memory ModesWrap when full or stop when full
Start ModesImmediate, push button, date & time, or next interval
Stop ModesWhen memory full, push button, date & time, or after a set logging period
Restart ModePush button
Time Accuracy±1 minute per month at 25°C (77°F)
Battery TypeTwo AAA 1.5 V alkaline batteries, user replaceable
Battery Life1 year, typical with logging interval of 1 minute and Bluetooth Always On enabled; 2 years, typical with logging interval of 1 minute and Bluetooth Always On disabled; and temperatures between 0° and 50°C (32° and 122°F). Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life.
Memory4 MB (1.9 million measurements, maximum)
Full Memory Download TimeApproximately 4 to 15 minutes depending on the mobile device; may take longer the further the device is from the logger
LCDLCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Size11.28 x 5.41 x 2.92 cm (4.44 x 2.13 x 1.15 in.)
Weight123 g (4.34 oz)
Environmental RatingIP54

Description: ce
 		The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).

FCC Logo

Australia/New Zealand General Compliance mark

Australia/New Zealand General Compliance mark

South Korea KC Certification for Electrical and Electronic Products


*Per RH sensor manufacturer data sheet

Download Katalog

HOBO® MX Analog/Temp/RH/Light (MX1104) and MX 4-Channel Analog (MX1105)
