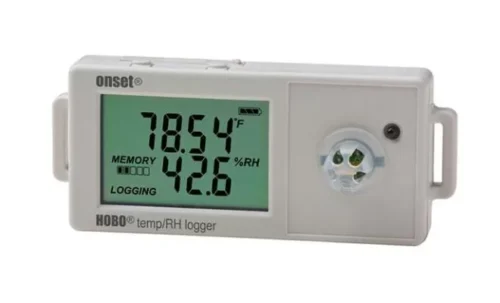

HOBO Temp/RH 2.5% Data Logger

HOBO Temp/RH 2.5% Data Logger

Jika anda berminat untuk membeli alat HOBO Temp/RH 2.5% Data Logger yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: , , , , , , , , , , , , , ,

Deskripsi

Overivew

Dengan sensor terintegrasi, mengukur dan mencatat suhu dan kelembaban relatif (dalam akurasi 2,5%) di lingkungan dalam ruangan. Logger ini ideal untuk memantau kenyamanan penghuni di gedung perkantoran, melacak kondisi penyimpanan makanan di gudang, mencatat tren suhu di ruang server, dan mengukur tingkat kelembapan di museum.

Features

  • Easy-to-view LCD display
  • Large memory capacity
  • Visual high & low alarm thresholds
  • Burst and Statistics logging modes
  • User-replaceable relative humidity sensor

Spesifikasi

Temperature Sensor

Range
-20° to 70°C
-4° to 158°F
Accuracy
±0.21°C from 0° to 50°C , see manual for plot
±0.38°F from 32° to 122°F , see manual for plot
Resolution
0.024°C at 25°C , see manual for plot
0.04°F at 77°F , see manual for plot
Response Time
4 minutes in air moving 1 m/s (2.2 mph)
Drift
<0.1°C per year
0.18°F per year

RH Sensor

Range
1% to 95% (non-condensing)
Accuracy
±2.5% from 10% to 90% typical to a maximum of ±3.5% including hysteresis at 25°C (77°F); below 10% and above 90% ±5% typical
Resolution
0.01%
Response Time
10 seconds to 90% in airflow of 1 m/s (2.2 mph)
Drift
<1% per year typical

Logger

Logger Operating Range
Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification
Logging Rate
1 second to 18 hours, 12 minutes, 15 seconds
Logging Modes
Fixed interval (normal), burst, or statistics
Memory Modes
Wrap when full or stop when full
Start Modes
Immediate, push button, date & time, or next interval
Stop Modes
When memory full, push button, or date & time
Restart Mode
Push button
Time Accuracy
±1 minute per month at 25°C (77°F)
Power Source
One 3V CR2032 lithium battery and USB cable
Battery Life
1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater
Memory
128 KB (63,488 measurements, maximum)
Download Type
USB 2.0 interface
Full Memory Download Time
20 seconds
LCD
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Size
3.66 x 8.48 x 2.29 cm
1.44 x 3.34 x 0.9 in.
Weight
30 g
1.06 oz
Environmental Rating
IP50
CE Compliance Mark

Download Katalog

HOBO® Temp/RH 2.5% Data Logger (UX100-011A)
