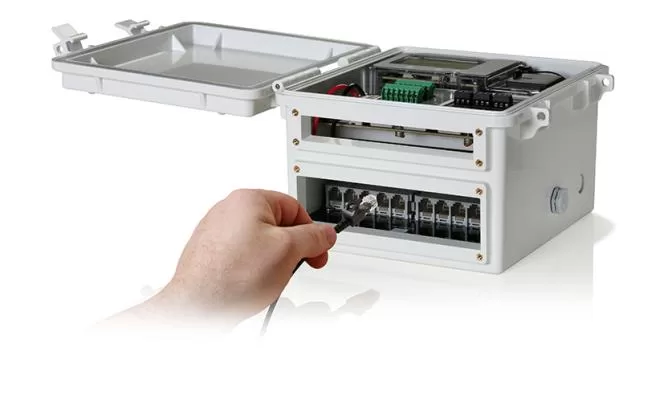

HOBO RX3000 Remote Monitoring Station

HOBO RX3000 Remote Monitoring Station

Jika anda berminat untuk membeli alat RX3000 Remote Monitoring Station yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Tag:

Deskripsi

Overview

Stasiun pencatatan data jarak jauh yang paling fleksibel dari Onset, HOBO RX3000 menyediakan akses cepat ke data lingkungan spesifik lokasi di mana saja, kapan saja, melalui internet. Stasiun yang dapat dikonfigurasi ini menggabungkan keserbagunaan dan kualitas sensor dari sistem yang lebih mahal, layar LCD onboard, dan kenyamanan pengoperasian plug-and-play.

Features

  • Flexible support for a broad range of sensors
  • LCD display for easy field deployment
  • Cloud-based data access through HOBOlink
    • Get 24/7 web access to your data via web browser
    • Verify RX3000 system status remotely
    • Set up and manage alarm notifications over the web
    • Schedule automated delivery of data
  • Plug-and-play operation
  • Alarm notifications via text, email
  • Rugged double-weatherproof enclosure
  • Configurable from your mobile device
  • Optional Analog Input, Relay, and Water Level Sensor Modules
  • Remote water level and water flow monitoring with Onset’s water level module (RXMOD-W1)
  • Access to NEWA plant disease risk and insect pest models

Spesifikasi

Operating Range-40° to 60°C (-40° to 140°F); no remote communications for battery voltage less than 3.9 V DC
Smart Sensor Connectors10
Smart Sensor Network Cable Length100 m (328 ft) maximum
Smart Sensor Data ChannelsMaximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
Module Slots2
Logging Rate1 second (RX3001 and RX3002) or 1 minute (RX3003 and RX3004) to 18 hours
Time Accuracy±8 seconds per month in 0° to 40°C (32°F to 104°F) range; ±30 seconds per month in -40° to 60°C (-40° to 140°F) range
Battery Type/Power Source4 Volt, 10 AHr, rechargeable sealed lead-acid; external power required using one of these options: AC power adapter (AC-U30), solar panel (SOLAR-xW), or external power source 5 V DC to 17 V DC with external DC power cable (CABLE-RX-PWR)
Rechargeable Battery Service LifeTypical 3–5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F); operation outside this range will reduce the battery service life
Memory32 MB, 2 million measurements, continuous logging
Alarm Notification LatencyLogging interval plus 2–4 minutes, typical
Enclosure AccessHinged door secured by two latches with eyelets for use with user-supplied padlocks
LCDLCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
MaterialsOuter enclosure: Polycarbonate/PBT blend with stainless steel hinge pins and brass inserts; Inner enclosure: Polycarbonate; Gaskets: Silicone rubber; Cable channel: EPDM rubber; Cable opening cover: Aluminum with ABS plastic thumb screws; U-Bolts: Steel with zinc dichromate finish
Size18.6 x 18.1 x 11.8 cm (7.3 x 7.1 x 4.7 in.); see diagrams on next page
Weight2.2 kg (4.85 lb)
Mounting3.8 cm (1.5 inch) mast or wall mount
Environmental RatingWeatherproof enclosure, NEMA 4X (requires proper installation of cable channel system)

ce
 		The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)

FCC Logo

Australia/New Zealand General Compliance mark

Taiwan NCC Mark

Australia/New Zealand General Compliance mark
 		RX3002: FCC ID R68XPICOW, IC ID 3867A-XPICOW RX3003: FCC ID QIPEHS6, IC ID 7830A-EHS6; approved for use in Taiwan and Japan RX3004: FCC ID QIPPLS62-W, IC ID:7830A-PLS62W
Wireless RadioRX3003: GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz, UMTS/HSPA+: Five band 800/850/900/1900/2100 MHz RX3004: GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz
AntennaRX3003: Penta band RX3004: 4G LTE
Ethernet (RX3001)
ConnectorOne RJ45/100BaseT
Wi-Fi (RX3002)
Network StandardsIEEE 802.11b/g/n
Frequency Range2.412–2.484 GHz
Antenna Connector1, no diversity supported
Data Rates1, 2, 5.5, 11 Mbps (802.11b); 6, 9, 12, 18, 24, 36, 48, 54 Mbps (802.11g); 802.11n, HT20 MCS0 (6.5 Mbps) to HT20 MC87 (65 Mbps)
Number of Selectable Radio SubchannelsUp to 14 channels; profiles available will include USA, France, Japan, Spain, Canada, and “Other” (multiple countries)
Radio ModulationsOFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM
SecurityWEP 64/128, WPA-PSK, AES end-to-end encryption, WPA2, protocols not listed are not supported
Maximum Receive Level-10 dBm (with PER <8%)
Receiver Sensitivity-72 dBM for 54 Mbps, -87 dBm for 11 Mbps, -89 dBm for 5.5 Mbps, -90 dBm for 2.0 Mbps, -92 dBm for 1.0 Mbps
Cellular (RX3003 and RX3004)
Wireless RadioRX3003: GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz, UMTS/HSPA+: Five band 800/850/900/1900/2100 MHz RX3004: GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz
AntennaRX3003: Penta band RX3004: 4G LTE
