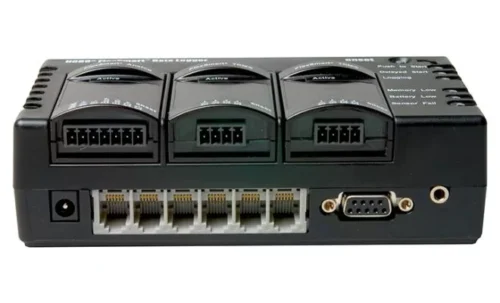

HOBO H22 Energy Data Logger

HOBO H22 Energy Data Logger

Jika anda berminat untuk membeli alat HOBO H22 Energy Data Logger yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: , , , , , , , , , , , , , , , , , , Tag:

Deskripsi

Overview

Pencatat data 15 saluran ini memungkinkan manajer energi dan fasilitas memantau energi dan peralatan industri dengan cepat dan mudah mendeteksi dan mengatasi berbagai masalah yang berkaitan dengan HVAC, mesin, dan sistem lainnya. Sebagai perangkat modular, HOBO H22-001 Energy Data Logger lebih ekonomis daripada alternatifnya karena tidak memerlukan kotak peralatan yang penuh dengan pencatat data.

Features

  • Flexible data logger records up to 15 channels of more than a dozen measurements
  • Provides 12v excitation for third-party sensors
  • Pre-configured Smart Sensors get you started fast
  • Signal conditioning modules retain configurations until you change them, providing plug-and-play convenience for commonly used sensors
  • Flexible power options include battery operation for AC power adapter

Spesifikasi

No category

Operating range
-20° to 50°C with alkaline batteries
-4° to 122°F with alkaline batteries
-40° to 60°C with lithium batteries
-40° to 140°F with lithium batteries
Sensor inputs
Three FlexSmart multi-channel modules and up to 6 Smart Sensors (which may have multiple parameters/channels)
Sensor connectors
Six RJ-12 Smart Sensor jacks plus 3 FlexSmart module slots
Communication
RS-232 via 3.5 mm serial port or/and 9-pin D-Sub connector
Dimensions
15.6 cm x 8.4 cm x 4.6 cm
6.13" x 3.31" x 1.81"
Weight
435 g with batteries
15.23 oz with batteries
238 g without batteries
8.33 oz without batteries
Memory
512K nonvolatile flash data storage
Memory modes
Stop when full; wrap when full
Operational indicators
Six indicators provide logging and sensor network status
Logging interval
One second to 18 hours, user-specified interval (2-second minimum for two-channel S-FS-TRMSA operation)
Sensor excitation
12 V DC at 200 mA total, with user-programmable warmup time on a per-channel basis
Battery life
One year typical use (up to 75 mA excitation with 10-minute or longer logging Interval and 1-second warmup time)
Battery type
Eight standard AA alkaline batteries included (for operating conditions -20°C to 50°C)
Eight standard AA alkaline batteries included (for operating conditions -4°F to 122°F)
Optional AA lithium batteries available for operating conditions of -40° to 60°C.
Optional AA lithium batteries available for operating conditions of -40° to 140°F.
External power
Supports optional 13.6 V DC regulated AC Wall Adapter Connector. Internal batteries may remain installed. Alternatively, an automotive battery or 9-12 V DC regulated Wall Adapter may be used, but it is recommended to remove the internal batteries since they will discharge to the level of the external supply.
Time accuracy
0 to 2 seconds for the first data point and ±5 seconds per week at 25°C
0 to 2 seconds for the first data point and ±5 seconds per week at 77°F
Logging mode
Immediate, timed delay, or trigger (button-push) start options; supports sampling intervals for some sensors
Data communication
Current readings while logging; read out while logging; read out when stopped
CE Compliance Mark

Download Katalog
