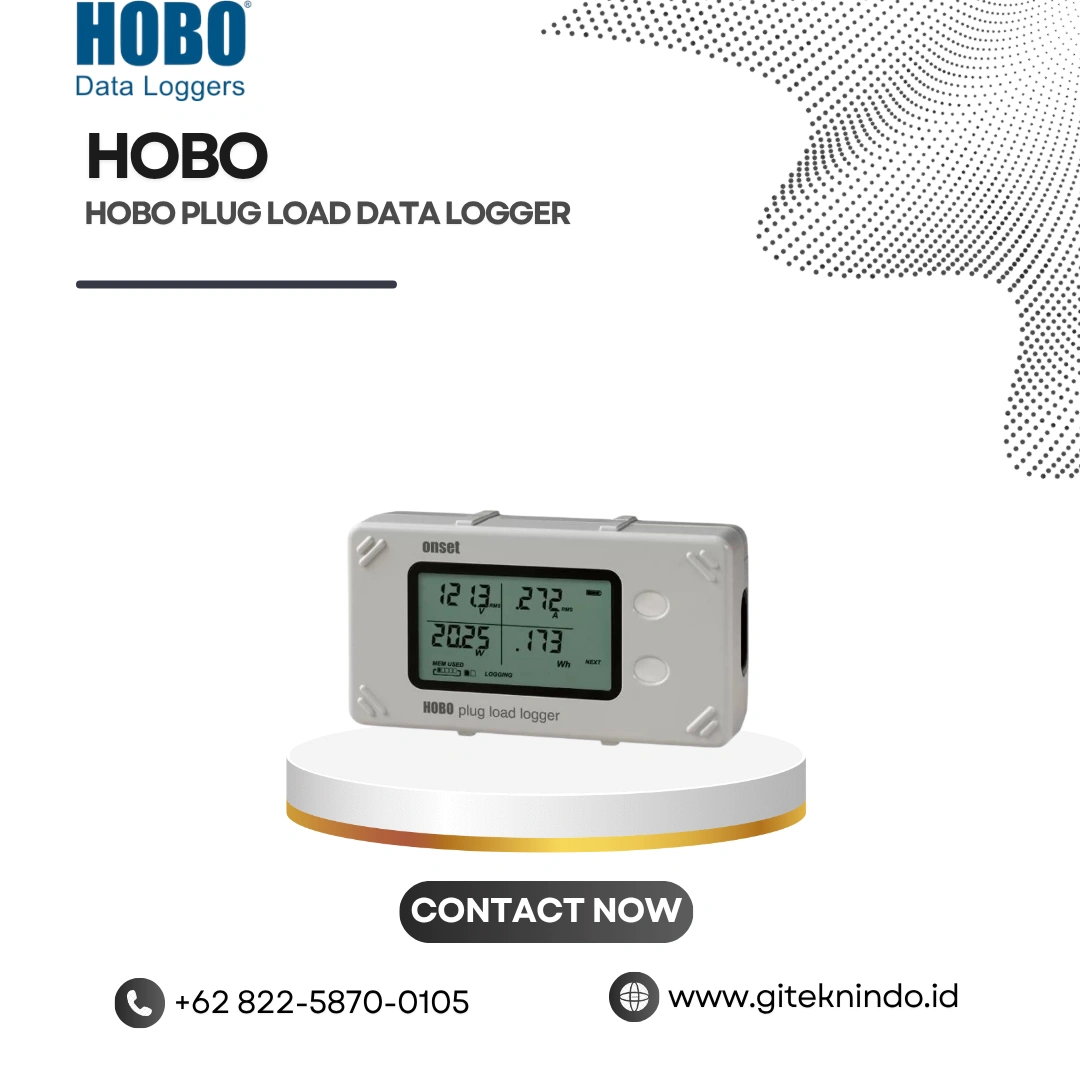

HOBO Plug Load Data Logger

Jika anda berminat untuk membeli alat HOBO Plug Load Data Logger yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: , , , , , , , Tag:

Deskripsi

Overview

Pencatat data dengan akurasi tinggi dan mudah digunakan yang mengukur dan mencatat konsumsi daya dan energi dari beban steker 120V dari peralatan kantor, mesin penjual otomatis, dan perangkat lainnya. Perangkat ini cukup dicolokkan ke pencatat data, dan pencatat data akan mencatat semua parameter daya utama. Pencatat bersertifikasi UL ini memberikan akurasi pengukuran 0,5% dengan resolusi pengukuran 1 watt, sehingga menjadikannya pilihan ideal untuk audit gedung yang memerlukan data penggunaan energi secara terperinci. Housing yang kokoh dirancang untuk tahan terhadap kerasnya penanganan di dunia nyata, memberikan kinerja yang andal meskipun terbentur, terjatuh, dan digunakan di bawah meja.

Features

No Electrician Required

Simply plug in the device that needs to be monitored.

  • 0.5% measurement accuracy enables more reliable plug load energy data
  • “Meter Mode” provides instant viewing of real-time plug load variables
  • Provides time-stamped and totalized load data for detailed energy analysis
  • Large memory enables faster logging intervals for more comprehensive plug load profiles
  • Battery backup ensures logged data remains intact in the event of a power outage or load failure
  • Full-featured LCD display provides visual diagnostics for easy deployment
  • Compatible with HOBOware and HOBOware Pro software for logger setup and graphing & analysis

Spesifikasi

Note: The UX120-018 logger is intended for use on 15 AMP circuits (NEMA 5-15P) with a working voltage of 120V AC ±10% at 50/60Hz and a max power of 1800W.
  • Indoor use only
  • Insulation category 2
Maximum Current: 15 Amps
RMS Voltage Accuracy:0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle
RMS Current Accuracy:0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle
Active Power Accuracy:0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle
Active Energy Accuracy:0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle
Power Factor Accuracy:±0.02
Drift:Up to 0.5% typical within 1 year
Resolution:
Volts, rms10mV
Amps, rms0.1mA
Active Power10mW down to 1 watt loads @ 120VAC
Active Energy10mW
Apparent Power10mVA
Power Factor0.01 PF
Operating Environment:Logging: 5° to 40°C (41° to 104°F); 0 to 95% RH (non-condensing), up to 2,000 m (6,562 ft) altitude
Operating Modes:Meter or logging when launched with HOBOware
Logging Rate:1 second to 18 hours, 12 minutes, 15 seconds
Statistics Sampling Rate:60 Hz or 16.67 mS single-cycle
Memory Modes:Wrap when full or stop when full
Start Modes:Immediate, push button, date & time, or next interval
Stop Modes:When memory full, push button, or date & time
Restart Mode:Push button
Time Accuracy:±1 minute per month at 25°C (77°F), see Plot A
Power Source:Line-powered with 0.92 m (3 ft) AC power cord or two AAA 1.5 V alkaline batteries, user replaceable
Battery Life:2 years with line power; 6 months battery only (no line power) with logging rate of 1 minute or greater operating at 25°C (77°F)
Memory:4 MB (1.4 million measurements, maximum)
Download Type:USB 2.0 interface
Full Memory Download Time:Approximately 1.5 minutes
LCD:LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Size:13.97 x 7.62 x 4.75 cm (5.5 x 3 x 1.87 in.)
Weight:230.8 g (8.14 oz)
Ratings:IP50;
UL Logo
UL Listed; UL Listed to Canadian safety standards
Calibration:This device has been calibrated using equipment that has been tested in accordance with ANSI C12.20 0.5%.

Time Accuracy

Download Katalog

HOBO® Plug Load Logger (UX120-018)
