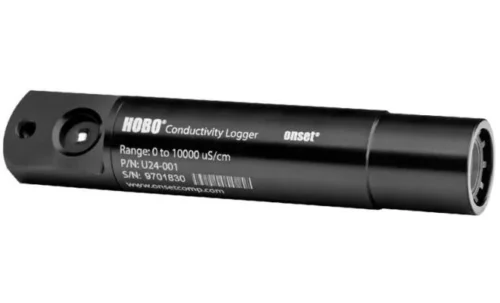

HOBO Fresh Water Conductivity Data Logger

Jika anda berminat untuk membeli alat HOBO Fresh Water Conductivity Data Loggeryang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: Brand:

Overview

Pencatat data dengan akurasi tinggi dan hemat biaya yang mengukur dan mencatat konduktivitas dan suhu di sungai, danau, dan sumber air tawar lainnya. Direkomendasikan untuk memantau akuifer untuk intrusi air asin dan limpasan jalan dan pertanian, akses terbuka ke sensornya menyederhanakan pembersihan dan pemeliharaan, dan sensor non-kontak meminimalkan kesalahan pengukuran yang terkait dengan penyimpangan. Juga dilengkapi dengan kompensasi penyimpangan berbasis perangkat lunak.

Lapisan titanium pentoksida pada sensor non-kontak mencegahnya bersentuhan dengan air, sehingga mencegah noda atau korosi yang terkait dengan sensor elektroda tradisional. Lapisan sensor ini juga inert, sehingga pengotoran dapat dengan mudah dibersihkan dari sensor.

Features

  • Titanium pentoixed coated non-contact sensor rovides long life and less measurement drift
  • Provides easy access to sensor for cleaning and shedding air bubbles
  • HOBOware Pro software enables start/end-point calibration to compensate for any fouling and provides easy conversion to specific conductance and salinity
  • USB optical interface provides high-speed, reliable data offload in wet environments
  • Compatible with the HOBO Waterproof Shuttle for easy and reliable data retrieval and transport

Spesifikasi

Measurements Actual Conductivity, Temperature, Specific Conductance at 25°C (calculated)
Conductivity Calibrated Measurement Ranges Low Range: 0 to 1,000 µS/cm
Full Range: 0 to 10,000 µS/cm
Conductivity Calibrated Range – Temperature Range 5° to 35°C (41° to 95°F)
Conductivity Extended Ranges Low Range: 0 to 2,500 µS/cm
Full Range: 0 to 15,000 µS/cm
Temperature Measurement Range -2° to 36°C (28° to 97°F)
Specific Conductance Accuracy (in Calibrated Range) Low Range: 3% of reading, or 5 µS/cm, and
Full Range: 3% of reading, or 20 µS/cm, whichever is greater, using Conductivity Data Assistant and calibration measurements
Conductivity Resolution 1 µS/cm
Temperature Accuracy 0.1°C (0.2°F) at 25°C (77°F)
Temperature Resolution 0.01°C (0.02°F)
Conductivity Drift Less than 3% sensor drift per year, exclusive of drift from fouling
Response Time 1 second to 90% of change (in water)
Operating Range -2° to 36°C (28° to 97°F) – non-freezing
Memory 18,500 temperature and conductivity measurements when using one conductivity range; 11,500 sets of measurements when using both conductivity ranges (64 KB total memory)
Sample Rate 1 second to 18 hrs, fixed or multiple-rate sampling with up to 8 user-defined sampling intervals
Clock Accuracy ±1 minute per month
Battery 3.6 Volt lithium battery
Battery Life 3 years (at 1 minute logging)
Maximum Depth 70 m (225 ft)
Weight 193 g (6.82 oz), buoyancy in freshwater: -59.8 g (-2.11 oz)
Size 3.18 cm diameter x 16.5 cm, with 6.3 mm mounting hole (1.25 in. diameter x 6.5 in., 0.25 in. hole)
Wetted Housing Materials Delrin®, epoxy, stainless steel retaining ring, polypropylene, Buna rubber O-ring, titanium pentoxide (inert coating over sensor)
Environmental Rating IP68


Description: ce



The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).

Download Katalog

HOBO® U24 Conductivity Logger (U24-001)
