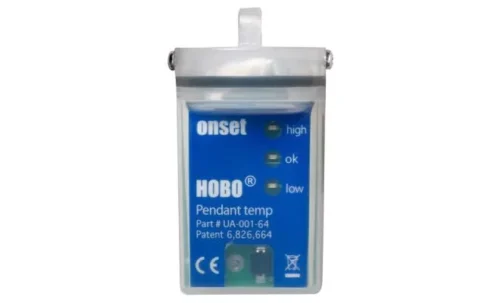

HOBO 64K Pendant Temperature/Alarm

Jika anda berminat untuk membeli alat HOBO 64K Pendant Temperature/Alarm (Waterproof) Data Logger yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Deskripsi

Overview

Pencatat data yang mini, berharga terjangkau, dan tahan air untuk aplikasi pemantauan suhu. Pencatat Data Suhu / Alarm HOBO Pendant Pendant memiliki satu saluran dan direkomendasikan untuk pengiriman jangka pendek atau pemantauan jangka panjang. Pencatat data ini memiliki indikator lampu LED yang terlihat yang memperingatkan pengguna ketika parameter yang telah ditetapkan telah terlampaui. Model ini menyimpan sekitar 52 ribu pembacaan suhu 10-bit. Untuk pengukuran suhu yang akurat di bawah sinar matahari, diperlukan pelindung radiasi matahari (Pelindung Radiasi Matahari RS1 yang perlu dirakit atau Pelindung Radiasi Matahari M-RSA yang sudah dirakit sebelumnya).

Features

  • Low-cost temperature with alarm indication or light intensity
  • Waterproof housing for wet or underwater use
  • Data readout in less than 30 seconds via fast Optic USB interface

Spesifikasi

Measurement range: -20° to 70°C (-4° to 158°F) Alarms: High and low alarms can be configured for total amount of contiguous or non-contiguous time outside of user-defined limits between -20° and 70°C (-4° to 158°F) Accuracy: ± 0.53°C from 0° to 50°C (± 0.95°F from 32° to 122°F), see Plot A in manual Resolution: Temperature: 0.14°C at 25°C (0.25°F at 77°F), see Plot A in manual Drift: Less than 0.1°C/year (0.2°F/year) Response Time Airflow of 2 m/s (4.4 mph): 10 minutes, typical to 90% Water: 5 minutes, typical to 90% Time accuracy: ± 1 minute per month at 25°C (77°F), see Plot B in manualOperating Range In water/ice: -20° to 50°C (-4° to 122°F) In air: -20° to 70°C (-4° to 158°F)Water depth rating: 30 m from -20° to 20°C (100 ft from -4° to 68°F), see Plot C in manual NIST traceable certification: Available for temperature only at additional charge; temperature range -20° to 70°C (-4° to 158°F) Battery life: 1 year typical use: deployments in extremely cold or hot temperatures, or logging intervals faster than one minute, may significantly reduce battery life Battery Type: CR2032Memory UA-001-08: 8K bytes (approximately 6.5K sample and event readings) UA-001-64: 64K bytes (approximately 52K sample and event readings)Materials: Polypropylene case; stainless steel screws; Buna-N o-ring Weight: 15.0 g (0.53 oz) Dimensions: 5.8 x 3.3 x 2.3 (centimeters) and 2.3 x 1.3 x 0.9 (inches) Environmental Rating: IP68; not rated for use in direct sunThe CE Marking identifies this product as complying with the relevant directives in the European Union (EU).

Download Katalog

HOBO® Pendant® Temperature Data Logger (UA-001-xx)
