Alat uji Ultrasonic Pulse Velocity (UPV) portabel untuk mengevaluasi kualitas, kekuatan, dan integritas beton tanpa merusak struktur (NDT). Sangat ideal untuk inspeksi infrastruktur dan konstruksi di lapangan.

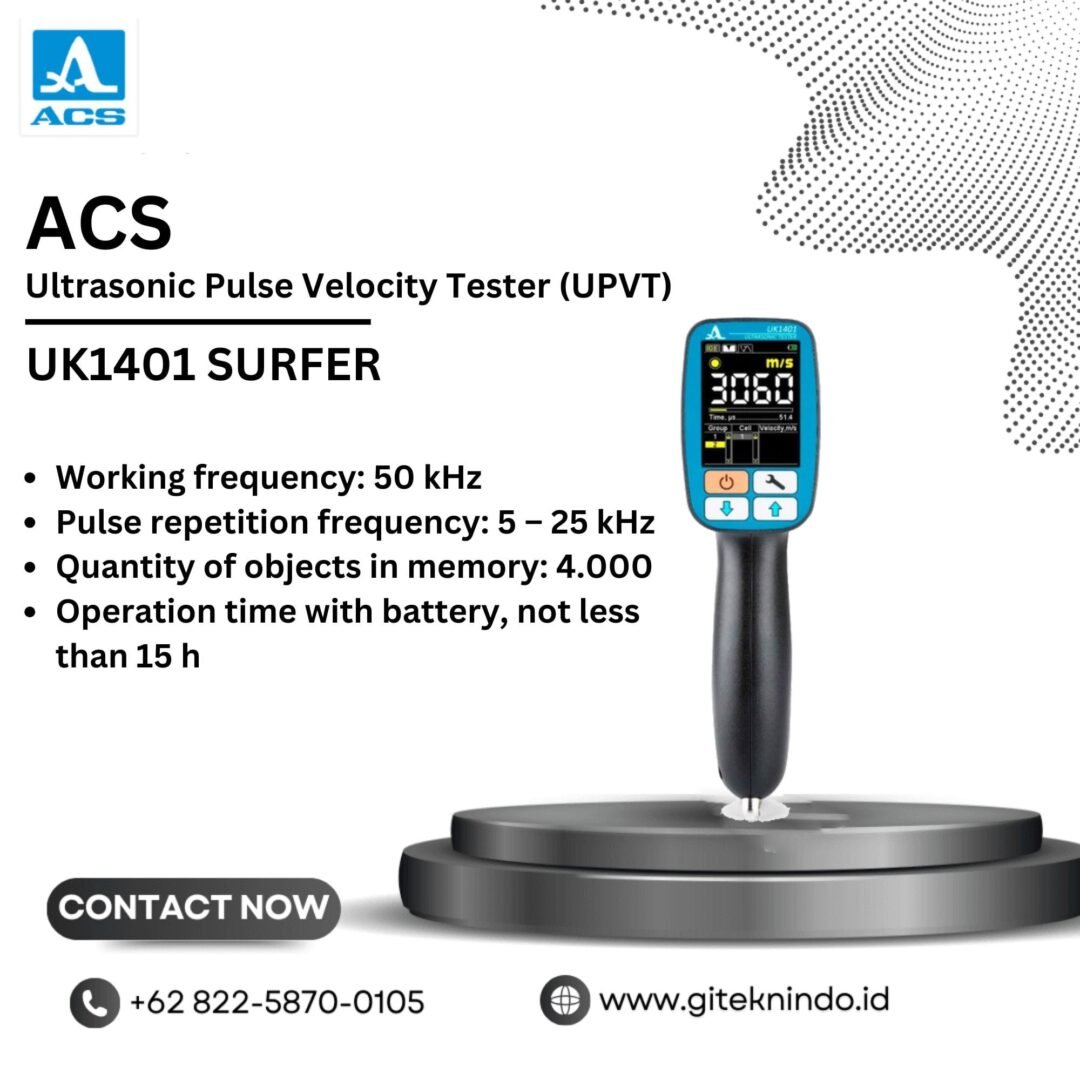

Ultrasonic Pulse Velocity Tester untuk Pengujian Beton | ACS UK1401 SURFER
Alat uji kecepatan pulsa ultrasonik yang ringkas, ergonomis, dan mudah digenggam untuk inspeksi beton.
Perangkat ini terbuat dari plastik ringan yang tahan benturan dan dilengkapi dengan dua transduser bawaan dengan dry-point-contact serta basis tetap (150 mm). Ujung transduser yang tahan aus tidak terpengaruh oleh kondisi permukaan, sehingga tidak memerlukan gel kopling atau persiapan permukaan sebelum pengukuran.
Spesifikasi
| Scanning base | 150 mm |
|---|---|
| Time measurement range | 15 – 100 μs |
| Velocity measurement range | 1500 – 9990 m/c |
| Crack deepness measurement range | 10 – 50 mm |
| Working frequency | 50 kHz |
| Pulse repetition frequency | 5 – 25 kHz |
| Quantity of objects in memory | 4 000 |
| Operating temperature range | from -20 to +45 °C |
| Operation time with battery, not less than | 15 h |
| Size | 199 х 120 х 34 mm |
| Weight of electronic unit | 350 g |
Aplikasi
- Evaluation of the durability of concrete. The evaluation is based on correlation between time of propagation/velocity of longitudinal ultrasonic waves in concrete. Measurements are performed by the surface scanning with a fixed base.
- Search for near-surface flaws in the concrete structures by abnormal decreasing of ultrasound velocity or increasing of the propagation time in the flaw area.
- Evaluation of anisotropy in composite materials.
- Evaluation of concrete curing during building of poured-in-place concrete method and sliding shuttering.
- Evaluation of the load-carrying ability of concrete backbones and posts.
- Evaluation of the depth of the outcrop cracks.
- Evaluation of porosity and fissuring of the material.
- Evaluation of the age of material if its physical properties change with time.
Delivery Kit
• UK1401 – ultrasonic tester
• USB A – Micro B cable
• USB adapter for 220V
• Checking sample
• Case
Download
Firmware files
Documents
• Firmware installation
• Operation manual
• Advertising flyer (Metric)
• Advertising flyer (Imperial)
