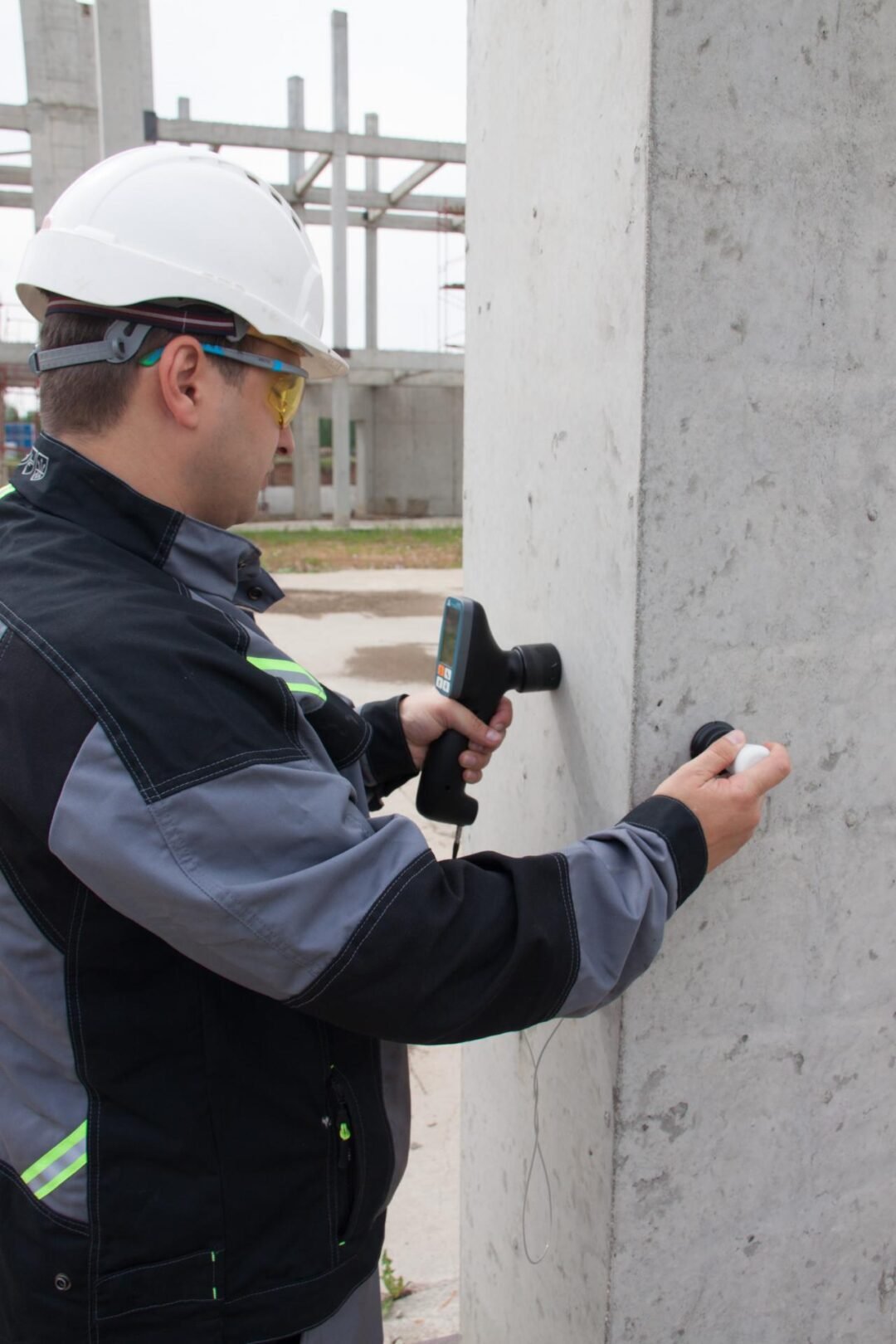

Instrumen uji ultrasonik mutakhir untuk inspeksi beton. Menawarkan antarmuka yang ramah pengguna dan kapabilitas pengukuran kecepatan rambat gelombang yang instan untuk evaluasi kekuatan beton seketika.
Ultrasonic Pulse Velocity Tester Beton | ACS A1410 PULSAR
Jika anda berminat untuk membeli alat ACS Ultrasonic Pulse Velocity Tester (UPVT) A1410 PULSAR yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :
PT. Global Intan Teknindo
- Alamat: Jl. Pd. Kelapa Raya No.11, RT.1/RW.4, Pd. Klp., Kec. Duren Sawit, Kota Jakarta Timur, Daerah Khusus Ibukota Jakarta 13460
- Whatsapp : +62 822-5870-0105 (Admin)
- Email : askgiteknindo@gmail.com
- Telp : 021-2284-3662
- Melalui Live Chat yang berada di pojok kanan bawah halaman website
Spesifikasi
| Type of ultrasonic transducers | Undamped DPC transducers |
|---|---|
| Transducer configuration | Array of 7 x DPC transducers, daisy wheel pattern |
| Operating frequency, kHz | 50 |
| Set delay range, µs | 0 to 20 |
| Adjustable range of the base size, mm | 50 to 2500 |
| Automatic Gain Control (AGC) | switchable |
| Maximum thickness of the inspection object, m | 2.5 |
| Indication resolution of the propagation time of ultrasonic waves, µs | 0.1 |
| Indication resolution of the propagation velocity of ultrasonic waves, m/s | 10 |
| Measurement range of the sound velocity, m/s | 1.000 to 15.000 |
| Measurement range of sound propagation time, μs | 0,1 to 10.000 |
| Rated supply voltage, V | 3.3 |
| Operation time with battery, not less than, hours | 16 |
| Display | 2,8”, 320×240 pixel |
| Overall dimensions of the electronic unit, mm., max. | 230×125×65 |
| Weight of the electronic unit, gr., max. | 420 |
| Mean time between failures, hours | 18,000 |
| Regular service life, years | 5 |
