Untuk mengukur setiap pergerakan lateral di bumi, melalui casing inclinometer, Digital MEMS Inclinometer System dari RST Instruments Ltd. adalah yang pertama, dan masih yang terbaik, Sistem Digital MEMS Inclinometer tersedia

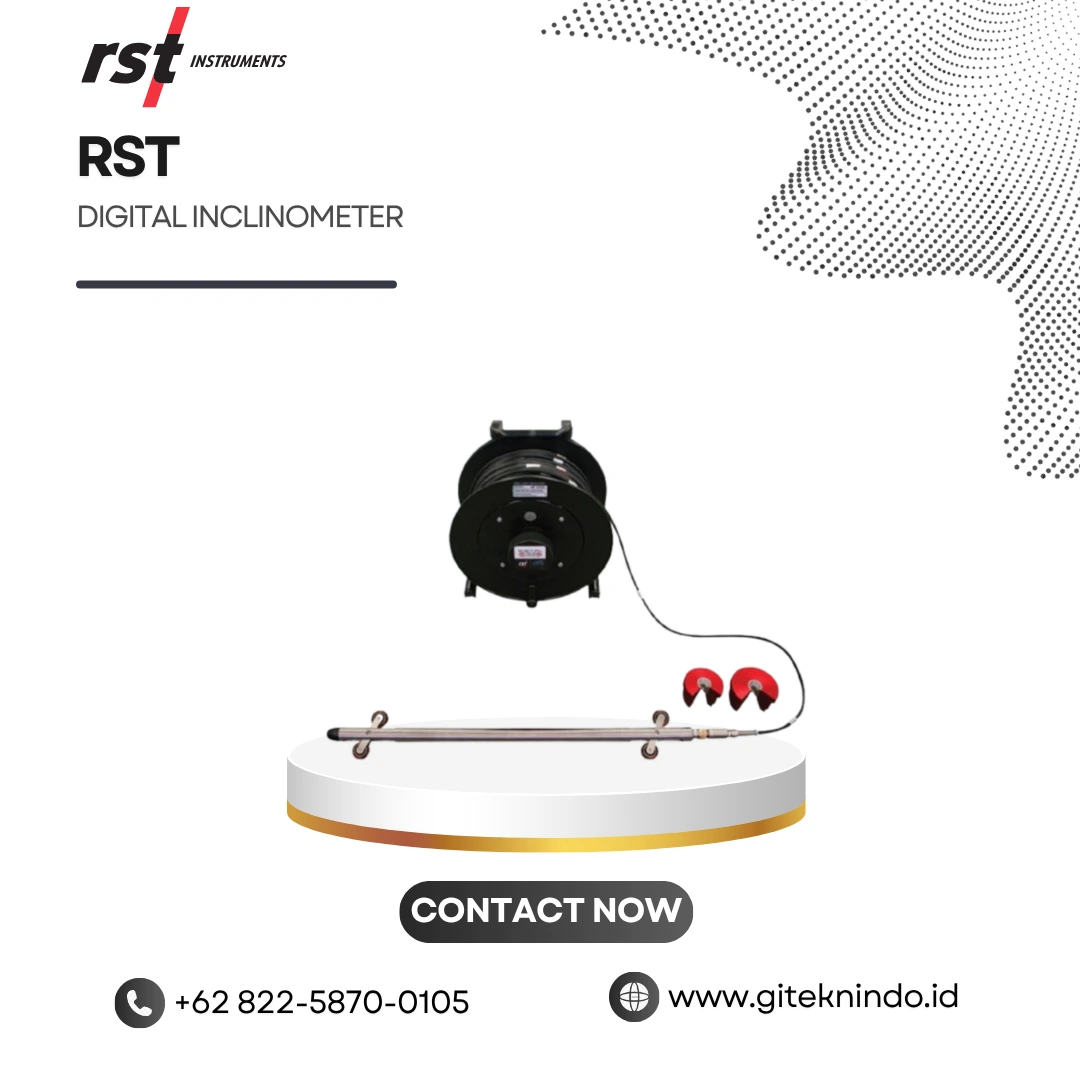

RST Digital Mems Inclinometer System
Jika anda berminat untuk membeli alat Geokon Digital Inclinometer System Model GK-604D yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :
PT. Global Intan Teknindo
- Alamat: Jl. Pd. Kelapa Raya No.11, RT.1/RW.4, Pd. Klp., Kec. Duren Sawit, Kota Jakarta Timur, Daerah Khusus Ibukota Jakarta 13460
- Whatsapp : +62 822-5870-0105 (Admin)
- Email : askgiteknindo@gmail.com
- Telp : 021-2284-3662
- Melalui Live Chat yang berada di pojok kanan bawah halaman website
Spesifikasi
INCLINOMETER SPECIFICATIONS
| ITEM | METRIC SYSTEM | IMPERIAL SYSTEM |
| Wheelbase | 0.5 m | 24 in |
| Probe diameter | 25.4 mm | 1.00 in |
| Probe length (including connector) | 719 mm | 32.6 in |
| Probe weight | 1.06 kg | 2.45 lbs |
| Probe material | Stainless steel | Stainless steel |
| Full-scale range (other ranges available) | ±30 degrees | ±30 degrees |
| Data resolution | 0.005 mm per 500 mm | 0.00002 ft per 2 ft |
| Memory | >1,000,000 readings | >1,000,000 readings |
| Repeatability | ±0.002° | ±0.002° |
| System Accuracy | ±2 mm per 25 m | ±0.1 in. per 100 ft |
| Axis alignment | Digitally nulled | Digitally nulled |
| Temperature rating | -40 to +70°C | -40 to +158°F |
| Sensor Type | MEMS Accelerometer, Biaxial |
CABLE SPECIFICATIONS
| ITEM | METRIC SYSTEM | IMPERIAL SYSTEM |
| Cable diameter | 6.40 mm (±0.1 mm) | 0.25 in |
| Cable weight | 2.3 kg / 50 m | 3.1 lbs / 100 ft |
| Cable breaking strength | 1.8 kN | 400 lbs |
| Cable reinforcement | Kevlar® ‡ | Kevlar® ‡ |
| Cable jacket | Polyurethane | Polyurethane |
| Cable stretch (suspended in 50 m dry borehole) | 7.0 mm | 0.27 in |
CABLE REEL SPECIFICATIONS
| ITEM | METRIC SYSTEM | IMPERIAL SYSTEM |
| Up to 75 m cable reel diameter | 310 mm | 12.2 in |
| 100 to 200 m cable reel diameter | 380 mm | 15 in |
| +225 m cable reel diameter | 460 mm | 18 in |
| Reel weight with 50 m (100 ft.) cable | 4.7 kg | 8.4 lbs |
Aplikasi
Digital Inclinometer System biasa digunakan untuk:
- Bendungan
- Waduk
- Aplikasi Geoteknik
- Aplikasi Struktural
- Tambang Bawah Tanah
- Tambang Terbuka
