OVERVIEW

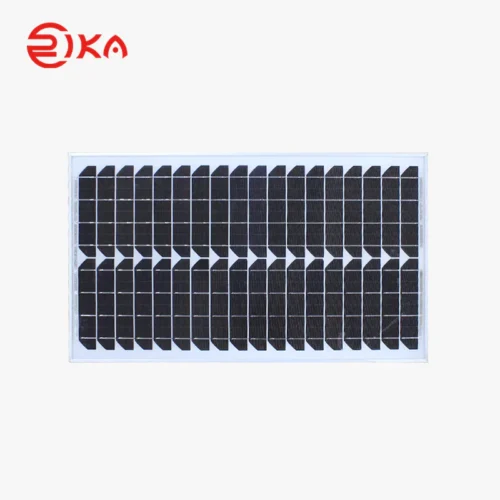

RK95-03 Solar power supply system consists of solar panel, solar controller, battery and the inverter (optional). Solar energy is a clean renewable new energy, has no moving parts, no noise, no pollution, high reliability. It can provide reliable power to sensors or weather stations, mainly used for wireless sensor, automatic test station, automatic weather stations and other power supply.
| Item | Technical parameters | |
| Rated current | 10A | |
| Rated voltage(self-adaption) | 12V | 24V |
| Solar panel voltage | 18V | 36V |
| Start voltage | 7V | 14V |
| Shutoff voltage | 3V | 6V |
| Float charging voltage | 13.8V | 27.6V |
| Boost charging voltage | 14.8V | 29.6V |
| Equalizing charging voltage | 14.4V | 28.8V |
| Over voltage protection | 16.5V | 33.0V |
| Over voltage recovery | 15.0V | 30.0V |
| Under voltage protection | 10.8V | 21.6V |
| Under voltage recovery | 12.8V | 25.6V |
| Commercial power start voltage | ≤10.8V | ≤21.6V |
| Commercial power shutoff voltage | ≥12.8V | ≥25.6V |
| Circuit protection | Overload, short protection | |
| No-load current | ≤12mA@12V | |
| Ingress Protection | IP67 | |
| Working temperature | -40℃～+70℃ | |
| Dimension | 81.0*62.0*20.0mm | |
| Application scope | Single wireless(WIFI,GPRS,Lora, etc.) sensor | RK160-02,RK200-05 or RK400-03 | RK900-01 |
| Solar panel | 5Wp@18V | 10Wp@18V | 30Wp@18V |
| 240*230*17mm | 295*295*20mm | 520*420*25mm | |
| Controller | 10A@12V/24V | 10A@12V/24V | 10A@12V/24V |
| 81*62*20mm | 81*62*20mm | 81*62*20mm | |
| Lead-acid battery | 7AH@12V | 12AH@12V | 20AH@12V |
| 151*65*94mm | 151*98*95mm | 181*76*165mm | |
| Protection box | Customized | Customized | Customized |
| Cable | RVV2*0.5 | RVV2*0.75 | RVV2*0.75 |
