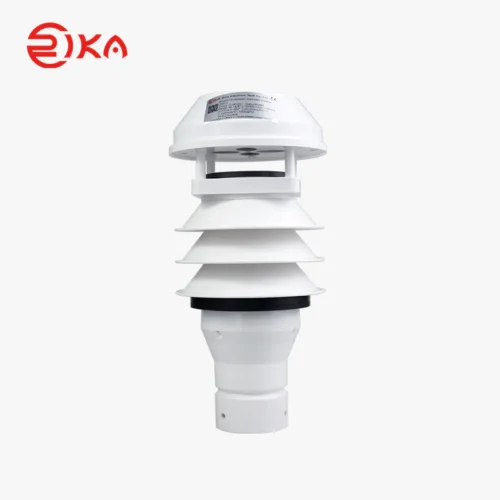

RK900-12 Ultrasonic Automatic Weather Instrument

Jika anda berminat untuk membeli alat RK900-12 Ultrasonic Automatic Weather Instrument yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

OVERVIEW

RK900-12 mini automatic weather station is a civil integrated weather station independently developed by our company that can measure multiple meteorological parameters. It can simultaneously measure six major meteorological elements such as atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure and rainfall.RK900-12 user a low-power chip with a power consumption of only 1.7W, which is especially suitable for solar energy or battery-powered environment with high requirements on power consumption. As a result of the adoption of new technology and new process, the structure is more compact and compact. Solar radiation and solar illuminance detection module can also be selected, which is very suitable for supporting agricultural meteorological system. The outer shell is ASA engineering plastic.

Spesifikasi

Item Technical Specification
Range Resolution Accuracy
Wind speed 0-70m/s 0.1m/s ±3%
Wind direction 0-359° ±3°
Atmospheric temperature -40℃ -+80℃ 0.1℃ ±0.5℃
Atmospheric humidity 0-100% 1% ±5%
Atmospheric pressure 300 - 1100hPa 0.1hPa ±1
Rainfall 0-200mm/hr 0.1mm ±5%
Altitude -500m – 9000m 1m ±5%
Radiation 0-2000W/m2 0.1 W/m2 ±5%
Illumination 0-200000lux 0.1 lux ±5%
UV 0-2000W/m2 0.1W/m2 ±10%
PM2.5 0-2000 ug/m3 1 ug/m3 ±5%
PM10 0-2000 ug/m3 1 ug/m3 ±5%
item Technical Specification
Power Supply 12-24VDC
Power consumption <1.7W
Output Signal RS232/RS485(Modbus or NMEA-183), SDI-12
Operating Temperature -20℃-+50℃
Ingress Protection IP65
Dimension Ф110*(217-298)mm(Dimensions will vary depending on the parameters)
Weight(unpacked) 0.39kg
Main material ASA
