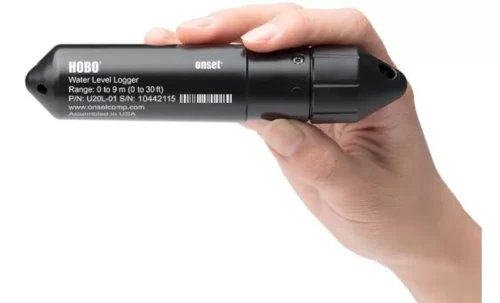

HOBO Water Level Data Logger

HOBO Water Level Data Logger

Jika anda berminat untuk membeli alat HOBO Water Level Data Logger (Water Level) yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Tag:

Deskripsi

Overview

Pencatat data berbiaya rendah dan berkelas penelitian untuk pemantauan terus menerus terhadap ketinggian dan suhu air pada kedalaman hingga 13, 30, atau 100 kaki di berbagai lingkungan bawah air. Pencatat data ini memiliki akurasi pengukuran 0,1%, wadah polipropilena untuk digunakan di air tawar dan air asin, dan desain tanpa ventilasi untuk penggunaan yang nyaman dan tidak merepotkan.

Features

  • Self-contained, non-vented design enables easy deployment
  • Ideal for use in both freshwater and saltwater environments, including wells, streams, lakes, wetlands, and tidal areas
  • Depths up to 13, 30, or 100 feet depending on model
  • Durable ceramic pressure sensor withstands freezing
  • HOBOware Pro software provides easy conversion to accurate water level reading, fully compensated for barometric pressure, temperature, and water density

Spesifikasi

Pressure (Absolute) and Water Level Measurements U20L-01

Operation Range
0 to 207 kPa (0 to 30 psia); approximately 0 to 9 m (0 to 30 ft) of water depth at sea level, or 0 to 12 m (0 to 40 ft) of water at 3,000 m (10,000 ft) of altitude
Factory Calibrated Range
69 to 207 kPa, 0° to 40°C
10 to 30 psia, 32° to 104°F
Burst Pressure
310 kPa or 18 m depth
45 psia or 60 ft depth
Water Level Accuracy*
Typical error: ±0.1% FS, 1.0 cm (0.03 ft) water
Maximum error: ±0.2% FS, 2.0 cm (0.06 ft) water
Raw Pressure Accuracy**
±0.3% FS, 0.62 kPa (0.09 psi) maximum error
Resolution
<0.02 kPa water
0.007 ft water
Pressure Response Time (90%)***
<1 second at a stable temperature; measurement accuracy also depends on temperature response time

Pressure (Absolute) and Water Level Measurements U20L-02

Operation Range
0 to 400 kPa (0 to 58 psia); approximately 0 to 30.6 m (0 to 100 ft) of water depth at sea level, or 0 to 33.6 m (0 to 111 ft) of water at 3,000 m (10,000 ft) of altitude
Factory Calibrated Range
69 to 400 kPa (10 to 58 psia), 0° to 40°C (32° to 104°F)
Burst Pressure
500 kPa (72.5 psia) or 40.8 m (134 ft) depth
Water Level Accuracy*
Typical error: ±0.1% FS, 3.0 cm (0.1 ft) water Maximum error: ±0.2% FS, 6.0 cm (0.2 ft) water
Raw Pressure Accuracy**
±0.3% FS, 1.20 kPa (0.17 psi) maximum error
Resolution
<0.04 kPa (0.006 psi), 0.41 cm (0.013 ft) water
Pressure Response Time (90%)***
<1 second at a stable temperature; measurement accuracy also depends on temperature response time

Pressure (Absolute) and Water Level Measurements U20L-04

Operation Range
0 to 145 kPa (0 to 21 psia); approximately 0 to 4 m (0 to 13 ft) of water depth at sea level, or 0 to 7 m (0 to 23 ft) of water at 3,000 m (10,000 ft) of altitude
Factory Calibrated Range
69 to 145 kPa (10 to 21 psia), 0° to 40°C (32° to 104°F)
Burst Pressure
310 kPa (45 psia) or 18 m (60 ft) depth
Water Level Accuracy*
Typical error: ±0.1% FS, 0.4 cm (0.013 ft) water Maximum error: ±0.2% FS, 0.8 cm (0.026 ft) water
Raw Pressure Accuracy**
±0.3% FS, 0.43 kPa (0.063 psi) maximum error
Resolution
<0.014 kPa (0.002 psi), 0.14 cm (0.005 ft) water
Pressure Response Time (90%)***
<1 second at a stable temperature; measurement accuracy also depends on temperature response time

Temperature Measurements (All Models)

Operation Range
-20° to 50°C
-4° to 122°F
Accuracy
±0.44°C from 0° to 50°C , see manual for plot
±0.79°F from 32° to 122°F , see manual for plot
Resolution
0.10°C at 25°C , see manual for plot
0.18°F at 77°F , see manual for plot
Response Time (90%)
10 minutes in water (typical)
Stability (Drift)
0.1°C per year
0.18°F per year

Logger

Real-time Clock
±1 minute per month 0° to 50°C (32° to 122°F)
Battery
2/3 AA, 3.6 Volt lithium, factory-replaceable
Battery Life (Typical Use)
5 years with 1 minute or greater logging interval
Memory (Non-volatile)
64K bytes memory (approx. 21,700 pressure and temperature samples)
Weight
Approximately 154 g (5.43 oz) in air
Approximately 53.9 g (1.9 oz) in fresh water
Dimensions
3.18 cm (1.25 inches) diameter, 15.24 cm (6.0 inches) length; mounting hole 6.3 mm (0.25 inches) diameter
Wetted Materials
Polypropylene housing and lanyard; Viton and Buna-N O-rings; ceramic sensor in acetal end cap; stainless steel screws suitable for saltwater
Logging Interval
Fixed-rate or multiple logging intervals, with up to 8 user-defined logging intervals and durations; logging intervals from 1 second to 18 hours. Refer to the HOBOware User’s Guide for details.
Launch Modes
Immediate start and delayed start
Offload Modes
Offload while logging; stop and offload
Battery Indication
Battery voltage can be viewed in status screen and optionally logged in datafile. Low battery indication in datafile.
Environmental Rating
IP68
