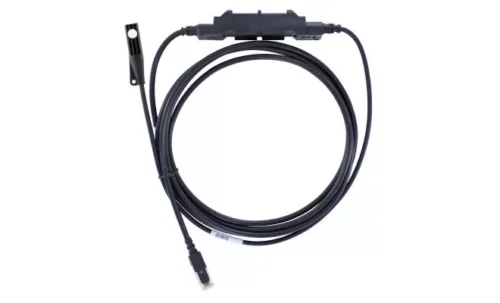

HOBO Temperature/Relative Humidity (2m cable) Smart Sensor

HOBO Temperature/Relative Humidity (2m cable) Smart Sensor

Jika anda berminat untuk membeli alat Temperature/Relative Humidity (2m cable) Smart Sensor yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: , , , , , , , , , , , , Tag: , ,

Deskripsi

Overview

Sensor suhu/kelembaban relatif yang dirancang untuk bekerja dengan semua pencatat data HOBO yang menerima Smart Sensor. Semua parameter sensor disimpan di dalam Smart Sensor, yang secara otomatis mengkomunikasikan informasi data konfigurasi ke pencatat data tanpa pemrograman, kalibrasi, atau pengaturan pengguna yang ekstensif.

Features

  • Smart Sensor
  • Works with all loggers that accept Smart Sensor inputs
  • Automatically communicates configuration data to the logger

Spesifikasi

Measurement Range
Temp: -40°C to 75°C (-40°F to 167°F) RH: 0-100%* RH at -40° to 75°C (-40° to 167°F); exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the maximum RH sensor error by an additional 1%
Accuracy Temp: ±0.25°C from -40° to 0°C (±0.45°F from -40° to 32°F); ±0.20°C from 0° to 70°C (±0.36°F from 32° to 158°F); ±0.25°C from 70° to 75°C (±0.45°F from 158° to 167°F) RH: ±2.5% from 10% to 90% RH (typical), to a maximum of ±3.5% including hysteresis at 25°C (77°F); below 10% and above 90% ±5% typical
Resolution Temp: 0.02°C RH: 0.01% RHBits Per Sample Temp: 16 RH: 16Drift Temp: < 0.01°C (0.18°F) per year RH: < 1% per year typical
Response Time (typical, to 90% of change)
Temp: Without solar radiation shield: 3 minutes, 45 seconds in air moving 1 m/s; With RS3-B solar radiation shield: 6 minutes, 30 seconds in air moving 1 m/s RH: Without solar radiation shield: 15 seconds in air moving 1 m/s; With RS3-B solar radiation shield: 30 seconds in air moving 1 m/sOperating temperature range: -40°C to 75°C (-40°F to 167°F) Environmental rating: Weatherproof: 0 to 100% RH intermittent condensing environments. For best results, protect the Temp/RH sensor from sunlight and direct splashing by mounting it inside a protective enclosure, such as a solar radiation shield. Housing: PVC cable jacket with ASA styrene polymer RH sensor cap; modified hydrophobic polyethersulfone membrane Sensor dimensions: 45.97 x 11.43 x 10.16 mm (1.81 x 0.45 x 0.40 inches) Weight: 110 g (3.88 oz) Number of data channels**: 2 Measurement averaging option: No Cable lengths available: 2.5 m (8.2 ft) Length of Smart Sensor network cable: 0.5 m (1.6 ft)
The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
The UKCA Mark identifies this product as complying with all relevant directives in the UK Declaration of Conformity.
* Maximum 100% RH readings are only logged with RX3000 stations. The maximum readings for this sensor with U30 and H21 stations are approximately 99.99%.
** A single HOBO station can accommodate 15 data channels and up to 100 m (328 ft) of smart sensor cable (the digital communications portion of the sensor cables).
