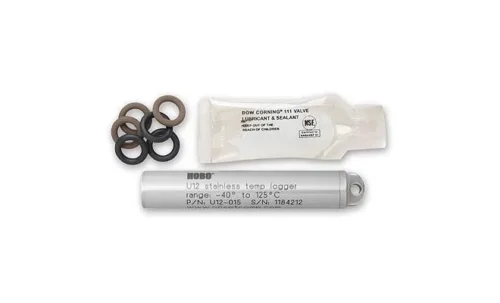

HOBO Stainless Temperature (4,900 ft.) Data Logger

Jika anda berminat untuk membeli alat HOBO Stainless Temperature (4,900 ft.) Data Logger yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: , , , , ,

Deskripsi

Overview

Pencatat data yang ideal untuk makanan, farmasi, autoklaf, dan aplikasi lain yang membutuhkan data suhu dengan akurasi tinggi. Dengan rentang suhu yang luas (-40 hingga 125C) dan housing baja tahan karat kelas makanan, pencatat data ini tahan terhadap kondisi proses, mulai dari pasteurisasi hingga pembekuan kilat dan pencucian. Logger ini juga sangat cocok untuk aplikasi di bawah air bersuhu tinggi atau dalam.

Features

  • Food-grade 316 Series Stainless Steel
  • High-accuracy, extended temperature range
  • Suitable for high pressure applications to 2200psi
  • Fast readout via direct USB interface
  • Compatible with HOBOware and HOBOware Pro for logger setup and graphing & analysis

Spesifikasi

Logger

Measurement Range
-40° to 125°C
-40° to 257°F
Accuracy
±0.25°C from 0° to 50°C , see manual for plot
±0.45°F from 32° to 122°F , see manual for plot
Resolution
0.03°C at 25°C , see manual for plot
0.05°F at 77°F , see manual for plot
Drift
0.09°F/year + 0.2°F/1000 hrs above 212°F
Response Time in 1 m/s (2.2 mph) airflow
U12-015: <10 minutes, typical to 90%
U12-015-02: 2.25 minutes, typical to 90%
Response Time in Water
U12-015: <3.5 minutes, typical to 90%
U12-015-02: 20 seconds, typical to 90%
Time Accuracy
±2 minute per month at 25°C (77°F)
Operating Environment
Air, water, steam, 0 to 100% RH
Operating Temperature
Logging: -40° to 125°C (-40° to 257°F)
Launch/readout: 0° to 50°C (32° to 122°F), per USB specification
Battery Life
3 year typical use, factory replaceable
Memory
64K bytes (43,000 12-bit measurements)
Construction
316 series stainless steel, EPDM or Viton O-ring; see Food-Grade Compliance section for additional details
Weight
U12-015: 72 g (2.5 oz)
U12-015-02: 82 g (2.9 oz)
Logger Dimensions
17.5 x 101.6 mm
0.69 x 4.00 inches
Probe Dimensions (U12-015-02 only)
4 x 124 mm
0.16 x 4.90 inches
Pressure/Depth Rating
2200 psi maximum
1500 m/4900 ft maximum
NIST Certificate
-22° to 248°F
CE Compliance Mark

Download Katalog

HOBO® U12 Stainless Temperature Data Logger (U12-015 and U12-015-02)
