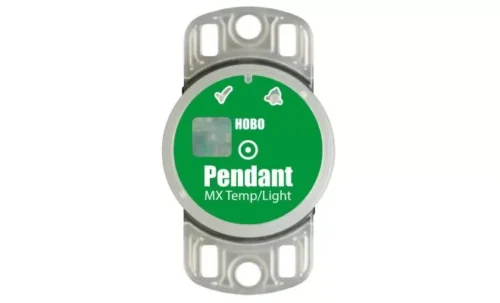

HOBO Pendant MX Temperature/Light Data Logger

Jika anda berminat untuk membeli alat HOBO Pendant MX Temperature/Light Data Logger yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Tag:

Deskripsi

Overview

Pencatat suhu/tingkat cahaya tahan air yang menggunakan kekuatan Bluetooth untuk mengirimkan data akurat langsung ke perangkat seluler atau komputer Windows Anda yang menjalankan aplikasi HOBOconnect gratis dari Onset. Didesain untuk daya tahan, pencatat ringkas ini sangat ideal untuk mengukur suhu di sungai, danau, lautan, dan lingkungan tanah.

Tambahkan MX Gateway. untuk akses ke data Anda di perangkat lunak HOBOlink berbasis cloud Onset (penggunaan di dalam ruangan).

Persyaratan Pemasangan: Sangat penting agar rumah logger tidak terdistorsi saat dipasang. Saat memasang logger ini ke permukaan yang tidak datar, seperti tulangan atau tali pelampung, kami sarankan untuk menggunakan Boot Pemasangan yang disertakan (BOOT-MX2201-2202). Boot ini juga berguna untuk memasang penebang sehingga dapat dengan mudah dilepas untuk diservis.

Features

  • New light sensor offers more accurate light intensity readings for light in the visible light spectrum
  • Convenient wireless setup and download via Bluetooth
  • Mounting boot included (1)
  • Large memory stores 96,000 measurements
  • Waterproof to 30 meters (100 feet)
  • User-replaceable battery
  • Mounting tabs for fast, easy deployment
  • LED indicates when temperature exceeds set threshold
  • Works with Onset’s free HOBOconnect app
  • ±0.5°C (±0.9°F) temperature accuracy and ±10% light accuracy typical for direct sunlight

Spesifikasi

Temperature Sensor (MX2201 and MX2202)

Range
-20° to 70°C in air
-4° to 158°F in air
-20° to 50°C in water
-4° to 122°F in water
Accuracy
±0.5°C from -20° to 70°C
±0.5°C from -4° to 158°F
Resolution
0.04°C
0.072°F
Drift
<0.1°C per year
<0.18°F per year
Response Time
17 minutes typical to 90% in air moving 1 m/s, unmounted
7 minutes typical to 90% in stirred water, unmounted

Light Sensor (MX2202)

Range
0 to 167,731 lux
0 to 15,582 lum/ft2
Accuracy
±10% typical for direct sunlight (see Light Measurement on page 2 for more details)

Logger

Logger Operating Range
-20° to 70°C in air
-4° to 158°F in air
Buoyancy (Fresh Water)
2 g positive
0.07 oz positive
Waterproof
To 30.5 m
To 100 ft
Radio Power
1 mW
0 dBm
Transmission Range
Approximately 30.5 m line-of-sight
Approximately 100 ft line-of-sight
Wireless Data Standard
Bluetooth Low Energy (Bluetooth Smart)
Logging Rate
1 second to 18 hours
Time Accuracy
±1 minute per month at 25°C
±1 minute per month at 77°F
Battery
CR2032 3V lithium, user replaceable
Battery Life
1 year typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always On enabled in software.
2 years typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always On disabled in software.
Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life.
To ensure proper battery installation, see Battery Information for detailed instructions on replacing the battery.
Memory
96,000 measurements
Full Memory Download Time
Approximately 45 seconds; may take longer the farther the device is from the logger
Wetted Materials
Polypropylene case, EPDM O-ring
Dimensions
3.35 x 5.64 x 1.8 cm
1.32 x 2.22 x 0.69 inches
Weight
12.75 g
0.45 oz
Environmental Rating
IP68
CE Compliance Mark
FCC Compliance Mark
Australia New Zealand Compliance Mark
Japanese Telecom Compliance Mark
Korean Compliance Mark
