HOBO MicroRX Station

Jika anda berminat untuk membeli alat HOBO MicroRX Station yang disediakan oleh PT Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: Brand:

Deskripsi

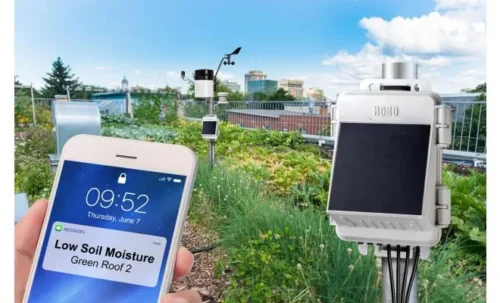

HOBO MicroRX Station merupakan stasiun pemantauan jarak jauh yang mengumpulkan, menyimpan, dan mengirimkan data lingkungan secara otomatis. Selain itu, perangkat ini mendukung berbagai aplikasi pada pertanian, hidrologi, penelitian, dan pemantauan cuaca. Selanjutnya, sistem komunikasi seluler mengirimkan data langsung menuju platform HOBOlink. Dengan demikian, pengguna dapat memantau kondisi lapangan secara waktu nyata dari berbagai lokasi.

HOBO MicroRX  mendukung berbagai sensor pintar HOBO serta sensor analog yang kompatibel. Selain itu, perangkat menyediakan beberapa saluran input untuk memenuhi berbagai kebutuhan pengukuran. Kemudian, pengguna dapat mengatur interval pencatatan dan pengiriman data sesuai kebutuhan aplikasi. Oleh karena itu, sistem memberikan fleksibilitas tinggi pada berbagai proyek pemantauan.

Perangkat menggunakan panel surya dan baterai isi ulang untuk mendukung pengoperasian berkelanjutan. Di samping itu, desain tahan cuaca menjaga performa perangkat pada lingkungan luar ruangan. Selanjutnya, sistem mendukung alarm otomatis ketika nilai pengukuran melampaui batas yang ditentukan. Karena itu, pengguna dapat merespons perubahan kondisi lapangan dengan lebih cepat.

HOBO MicroRX Station membantu pengguna mengelola data lingkungan secara efisien melalui platform HOBOlink. Selain itu, data historis mempermudah analisis tren dan evaluasi kondisi lingkungan dari waktu ke waktu. Tidak hanya itu, perangkat mendukung pengelolaan irigasi, penelitian, serta pemantauan sumber daya alam. Dengan demikian, pengguna dapat mengambil keputusan berdasarkan data yang akurat. Desain kokoh, komunikasi otomatis, dukungan berbagai sensor, dan konsumsi daya rendah menjadikan HOBO MicroRX Station sebagai solusi andal untuk pemantauan lingkungan profesional.

Spesifikasi

Operating Range MicroRX Station, battery-powered (RX2101 and RX2105) and Micro RX Water Level Station, battery-powered (RX2103): -40° to 60°C (-40° to 140°F)
MicroRX Station, solar-powered (RX2102), MicroRX Water Level Station, solar-powered (RX2104) and MicroRX Station for HOBOnet, solar-powered (RX2106): -20° to 60°C (-4° to 140°F)
Smart Sensor Connectors 5
Smart Sensor Network Cable Length 100 m (328 ft) maximum
Smart Sensor Data Channels Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
Logging Rate 1 minute to 18 hours
Time Accuracy ±8 seconds per month in 0° to 40°C (32°F to 104°F) range;
±30 seconds per month in -40° to 60°C (-40° to 140°F) range
Battery Type/Power Source RX2102, RX2104 and RX2106: Integrated 1.7 watt solar panel and NiMH rechargeable battery pack; optional AC power adapter (P-AC-1) or external solar panel (SOLAR-xW) can be used in place of integrated solar panel
RX2101, RX2103 and RX2105: 6 AA 1.5 V lithium batteries or AC power adapter (P-AC-1)
Battery Life RX2102, RX2104 and RX2106 Battery Life:

Typical 3–5 years when operated in the temperature range -20° to 40°C (-4° to 104°F); operation outside this range will reduce the battery service life.

Maximum connection rates with built-in solar panel, in full sun:

  • 10 minute connections year round for latitudes less than ±40°
  • 10 minute connections through three seasons in other regions, reduced to 30 minute connections in winter

Maximum connection rates with external 5W or 15W solar panels:

  • 10 minute connections year round, in full sun
  • Connection rate with external solar panels may be less if deployed in partial sun

Battery life without solar recharging, with hourly connections and
1 minute logging:

  • RX2102: 3 months
  • RX2104: 2 months
  • RX2106: 3 months

RX2101 and RX2103 Battery Life:

Battery life with daily connections:

  • RX2101: 1 year with 1 minute logging
  • RX2103: 1 year with 2 minute logging

Battery life with hourly connections and 1 minute logging:

  • RX2101: 3 months
  • RX2103: 2 months

Note: Deployments in areas with weak cellular strength could reduce battery life.

RX2105 Battery Life:

Runs continuously with the included AC adapter. Batteries can be used as a backup to AC power; battery life of 3 months with 1 minute logging and daily connections or 2 months with 1 minute logging and hourly connections, and with approximately 10 motes. Note: Deployments in areas with weak cellular strength could reduce battery life.



Memory 16 MB, 1 million measurements, continuous logging
Alarm Notification Latency Logging interval plus 2–4 minutes, typical
Enclosure Access Hinged door secured by two latches with eyelets for use with user-supplied padlocks
LCD LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Materials Outer enclosure: Polycarbonate/PBT blend with brass inserts; Interior: Polycarbonate/PBT; Gasket: Silicone foam; Cable channel: Santoprene™ TPE; U-Bolts (not included): Steel with zinc dichromate finish
Dimensions 19.95 x 13.68 x 7.49 cm (7.85 x 5.39 x 2.95 in.)
Weight 678 g (23.9 oz)
Mounting Optional U-bolts are compatible with masts up to 4.14 cm (1.63 in.) mast diameter; can also be mounted with zip ties or mounted to a flat surface with screws
Environmental Rating Weatherproof enclosure, NEMA 4X and IP66 (requires proper installation of cable channel system)
Wireless Radio GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz
Antenna 4G LTE




CE Compliance Mark



The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
Taiwan NCC Mark
Taiwan Compliance – RX2105 and RX2106 Micro RX versions only




FCC Compliance Mark



Australia/New Zealand General Compliance mark



FCC ID QIPPLS62-W, IC ID:7830A-PLS62W
