Deskripsi
VW2106 Vibrating Wire Readout portabel membaca, menampilkan, dan mencatat sensor kabel getar dan termistor. Sel beban kawat getar dapat dibaca tanpa aksesori tambahan.

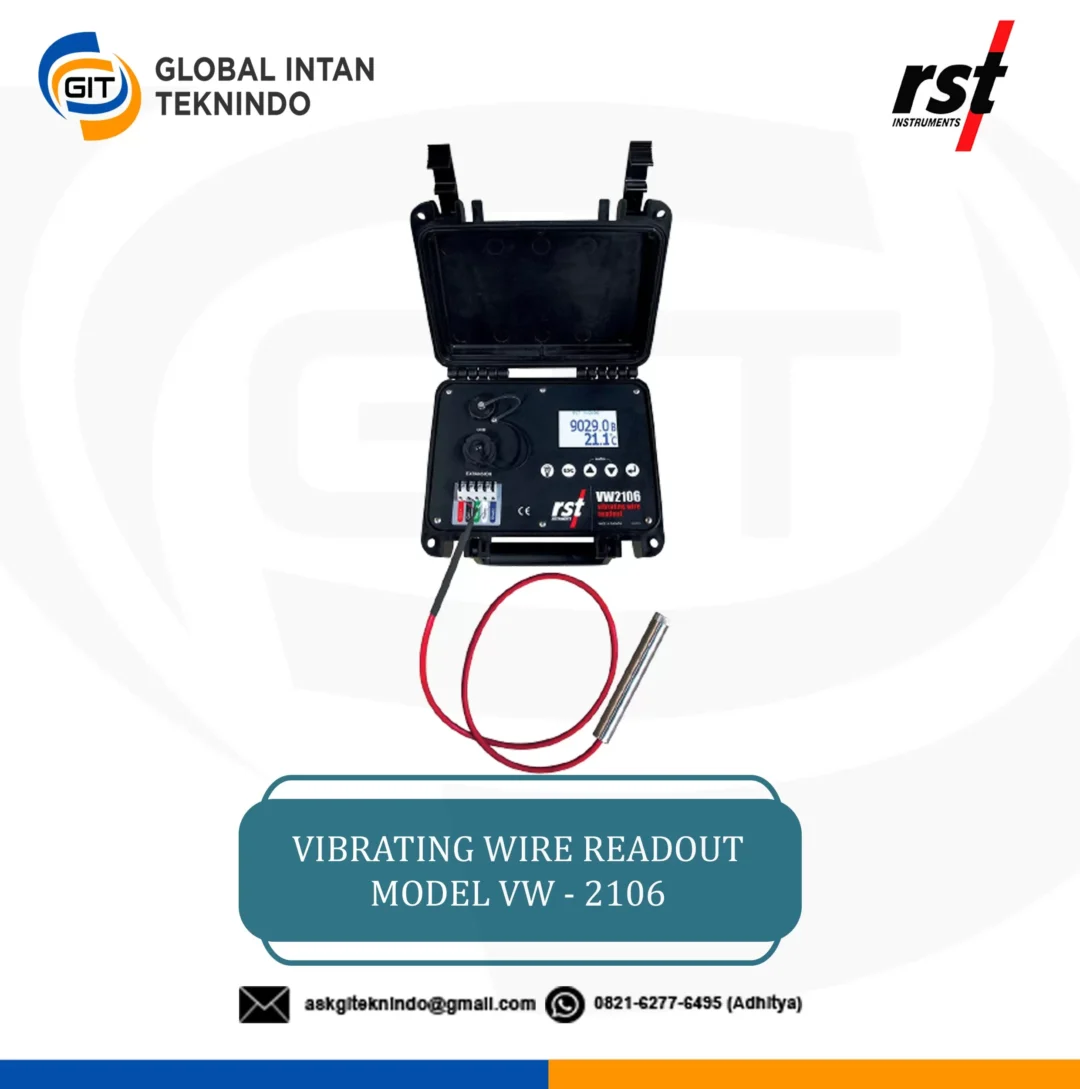

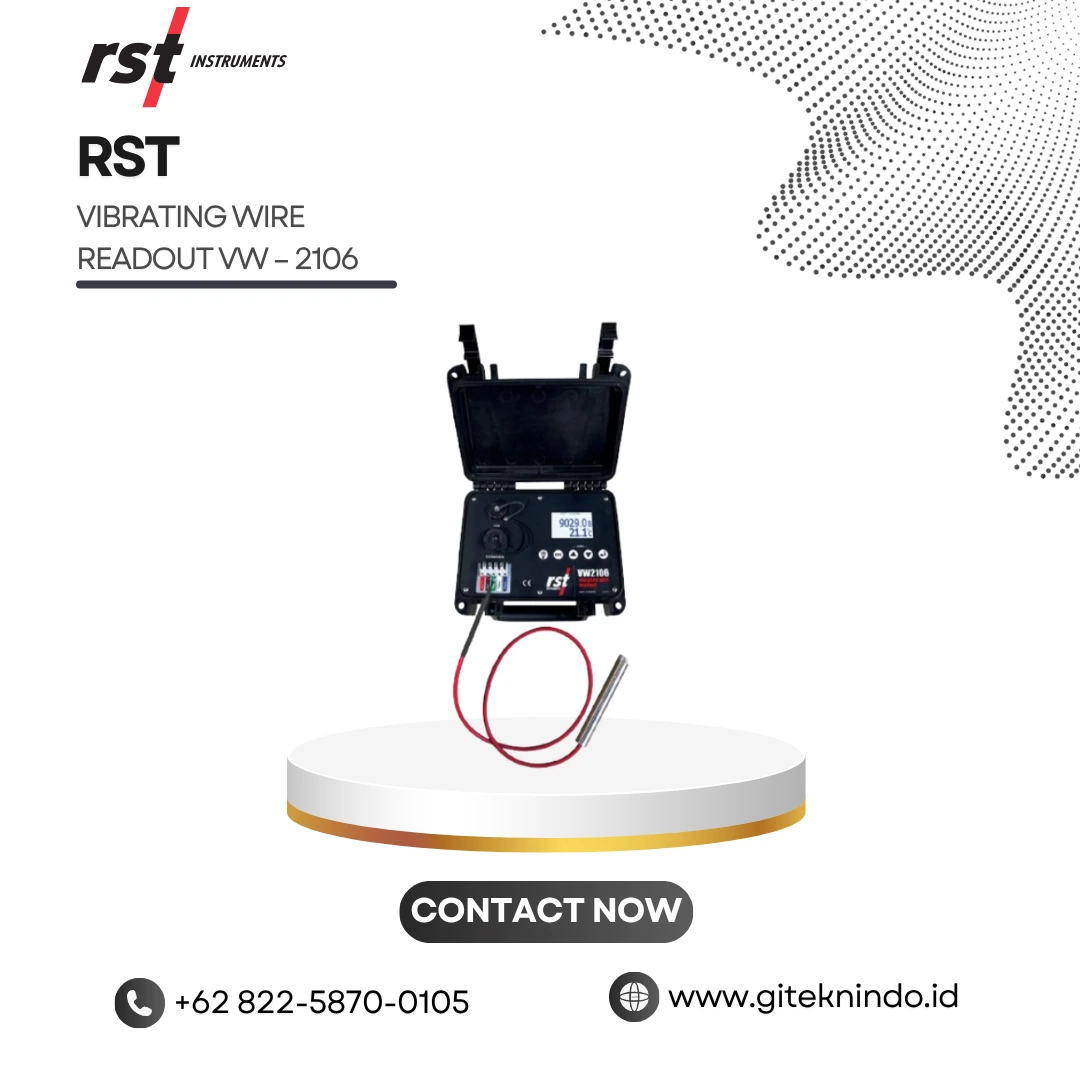

Vibrating Wire Readout VW – 2106
Jika anda berminat untuk membeli alat RST Vibrating Wire Readout VW – 2106 yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :
PT. Global Intan Teknindo
- Alamat: Jl. Pd. Kelapa Raya No.11, RT.1/RW.4, Pd. Klp., Kec. Duren Sawit, Kota Jakarta Timur, Daerah Khusus Ibukota Jakarta 13460
- Whatsapp : +62 821-6277-6495 (Adhitya)
- Email : askgiteknindo@gmail.com
- Telp : 021-2284-3662
- Melalui Live Chat yang berada di pojok kanan bawah halaman website
Spesifikasi
VW2106: VIBRATING WIRE READOUT SPECIFICATIONS
| ITEM | SPECIFICATION |
| Vibrating Wire Readout Excitation Range | 400 Hz to 6000 Hz, 5 V Square Wave |
| Vibrating Wire Readout Resolution | 0.01 µs |
| Vibrating Wire Readout Timebase Accuracy | ±50 ppm |
| Supported Temperature Readout Sensors | NTC3000 (standard), NTC2252, NTC10K, RTD |
| Temperature Readout Accuracy | ±0.1°C |
| Temperature Readout Range | -50°C to 80°C |
| Display | Graphic 128 x 64 pixels large character display |
| Display Backlight | High efficiency LCD with auto off |
| Max Instrument Locations | 254 |
| Memory Capacity | 11,400 custom labelled points |
| Location Identification String | Up to 20 characters |
| Download Speed | 15 seconds (full memory) |
| Battery | 3 “AA” alkaline |
| Battery Indicator | On-screen, low battery indicator |
| Operating Temperature | -20°C to 60°C |
| Dimensions | W 22 cm x D 19 cm x H 9.5 cm (8.75 x 7.5 x 3.75in.) |
| Weight | 1.1 kg (2.4 lbs) |
Download Katalog
