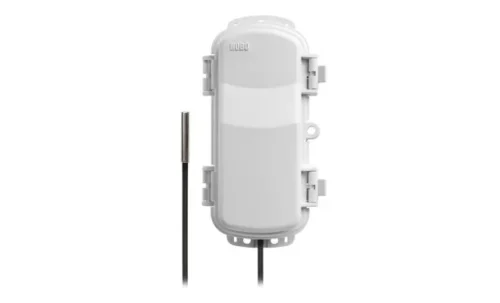

HOBOnet Wireless Temperature Sensor

Jika anda berminat untuk membeli alat HOBOnet Wireless Temperature Sensor yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: , , , , , , , , , , , ,

Deskripsi

Overview

Solusi yang hemat biaya dan dapat diskalakan untuk pemantauan suhu udara berbasis web. Sensor nirkabel HOBOnet mengkomunikasikan data secara langsung ke Stasiun HOBO RX atau meneruskan data melalui sensor nirkabel lainnya kembali ke stasiun pusat. Sensor ini telah dikonfigurasikan sebelumnya dan siap digunakan, dan data diakses melalui HOBOlink, platform perangkat lunak cloud Onset yang inovatif.

Features

Sensor Features

  • Measurement range of -40° to 100°C (-40° to 212°F)
  • High accuracy: ± 0.2°C ( ± 0.36°F)
  • Stainless-steel sensor tip

Wireless Features

  • 900 MHz wireless mesh self-healing technology
  • 450 to 600 meter (1,500 to 2,000 feet) wireless range and up to five hops
  • Up to 50 wireless sensors or 336 data channels per HOBO RX station
  • Simple button-push to join the HOBOnet wireless network
  • Onboard memory to ensure no data loss
  • Powered by 2 user-replaceable lithium AA batteries

Spesifikasi

Sensor
Measurement Range-40° to 100°C (-40° to 212°F)
Accuracy±0.25°C from -40° to 0°C (±0.45°F from -40° to 32°F) ±0.20°C from 0° to 70°C (±0.36°F from 32° to 158°F) ±0.25°C from 70° to 100°C (±0.45°F from 158° to 212°F)
Resolution0.02°C (0.036°F)
Drift<0.01°C (0.018°F) per year
Response Time (typical, to 90% of change)2 minutes, 30 seconds in air moving 1 m/sec
Wireless Mote
Operating Temperature Range-40° to 70°C (-40° to 158°F)
Radio Power12.6 mW (+11 dBm) non-adjustable
Transmission RangeReliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) high
Wireless Data StandardIEEE 802.15.4
Radio Operating FrequenciesRXW-TMB-x-900: 904–924 MHz RXW-TMB-x-868: 866.5 MHz RXW-TMB-x-921: 921 MHz RXW-TMB-x-922: 916–924 MHz
Modulation EmployedOQPSK (Offset Quadrature Phase Shift Keying)
Data RateUp to 250 kbps, non-adjustable
Duty Cycle<1%
Maximum Number of MotesUp to 50 wireless sensors or 336 data channels per one HOBO RX station
Logging Rate1 minute to 18 hours
Number of Data Channels2
Battery TypeTwo AA 1.5 V lithium batteries
Battery Life1 year, typical use
Memory16 MB
DimensionsSensor: 5.3 x 33 mm (0.2 x 1.3 inches) Cable length: 0.3 m (1 ft), RXW-TMB-1-xxx; 1.8 m (6 ft), RXW-TMB-6-xxx Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)
WeightSensor and cable: 7.6 g (0.27 oz), RXW-TMB-1-xxx; 35.2 g (1.24 oz), RXW-TMB-6-xxx Mote: 223 g (7.87 oz)
MaterialsSensor: Stainless steel waterproof tip Mote: PCPBT, silicone rubber seal
Environmental RatingSensor and cable: Immersion in water up to 50°C (122°F) for 1 year Mote: IP67, NEMA 6
Compliance Marks
FCC Logo
 RXW-TMB-1-900 and RXW-TMB-6-900

ce
 RXW-TMB-1-868 and RXW-TMB-6-868
Taiwan NCC Mark RXW-TMB-1-921 and RXW-TMB-6-921

Australia/New Zealand General Compliance mark
 RXW-TMB-1-922 and RXW-TMB-6-922

Download Katalog

HOBOnet® Wireless Sensor Network RXW Temperature Sensor (RXW-TMB-1-xxx and RXW-TMB-6-xxx)
