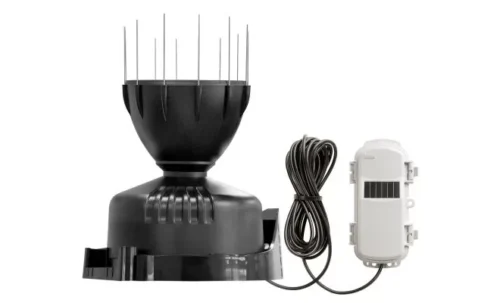

HOBOnet Rainfall (metric) Sensor

HOBOnet Rainfall (metric) Sensor

Jika anda berminat untuk membeli alat HOBOnet Rainfall (metric) Sensor  yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: , , , , , , , , , , , , , , , , Tag:

Deskripsi

Overview

Mencatat curah hujan dengan kenaikan 0,2 milimeter. Sensor nirkabel HOBOnet mengkomunikasikan data secara langsung ke HOBO RX3000 atau stasiun HOBO MicroRX atau meneruskan data melalui sensor nirkabel lainnya kembali ke stasiun pusat. Sensor-sensor ini telah dikonfigurasikan sebelumnya dan siap digunakan, dan data diakses melalui HOBOlink, platform perangkat lunak cloud Onset yang inovatif.

Features

Sensor Features

  • Resolution of 0.2 millimeters
  • Bird spikes
  • Debris screen that locks in place
  • Designed to meet World Meteorological Organization (WMO) guidelines

Wireless Features

  • 900 MHz wireless mesh self-healing technology
  • 450 to 600 meter (1,500 to 2,000 feet) wireless range and up to five hops
  • Up to 50 wireless sensors or 336 data channels per HOBO RX station
  • Simple button-push to join the HOBOnet wireless network
  • Onboard memory to ensure no data loss
  • Powered by rechargeable AA batteries and built-in solar panel

Spesifikasi

Measurement Range0 to 10.2 cm (0 to 4 in.) per hour, maximum 4,000 tips per logging interval
Accuracy±4.0%, ±1 rainfall count between 0.2 and 50.0 mm (0.01 and 2.0 in.) per hour; ±5.0%, ±1 rainfall count between 50.0 and 100.0 mm (2.0 and 4.0 in.) per hour
Resolution0.01 in.

Wireless Mote

Operating Temperature Range-25° to 60°C (-13° to 140°F) with rechargeable batteries -40 to 70°C (-40 to 158°F) with lithium batteries
Radio Power12.6 mW (+11 dBm) non-adjustable
Transmission RangeReliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) high
Wireless Data StandardIEEE 802.15.4
Radio Operating FrequenciesRXW-RGF-900: 904–924 MHz RXW-RGF-868: 866.5 MHz RXW-RGF-922: 916–924 MHz RXW-RGF-921: 921 MHz
Modulation EmployedOQPSK (Offset Quadrature Phase Shift Keying)
Data RateUp to 250 kbps, non-adjustable
Duty Cycle<1%
Maximum Number of MotesUp to 50 wireless sensors or 336 data channels per one HOBO RX station
Logging Rate1 minute to 18 hours
Number of Data Channels2
Battery Type/ Power SourceTwo AA 1.2V rechargeable NiMH batteries, powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40 to 70°C (-40 to 158°F)
Battery LifeWith NiMH batteries: Typical 3–5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F) and positioned toward the sun (see Deployment and Mounting), operation outside this range will reduce the battery service life With lithium batteries: 1 year, typical use
Memory16 MB
DimensionsSensor: 16.5 cm opening diameter (6.5 in.) x 24 cm (9.5 in.) high; 214 cm2 (33.2 in.2) collection area Cable length: 2 m (6.6 ft) Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)
WeightSensor and cable: 1.2 kg (2.7 lbs) Mote: 223 g (7.87 oz)
MaterialsSensor: UV-stabilized ABS plastic housing; tipping spoon mechanism with magnetic reed switch pivots on metal shaft Mote: PCPBT, silicone rubber seal
Environmental RatingSensor: Weatherproof Mote: IP67, NEMA 6
Compliance Marks
FCC Logo
 RXW-RGF-900
ce
 RXW-RGF-868
Australia/New Zealand General Compliance mark
 RXW-RGF-922 Taiwan NCC Mark RXW-RGF-921

Download Katalog
