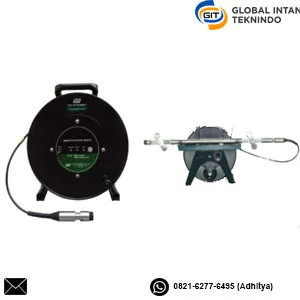

Ace Instruments Digital Vertical Inclinometer System - Gambar 4

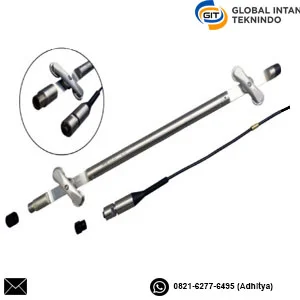

Ace Instruments Digital Vertical Inclinometer System - Gambar 5

Ace Instruments Digital Vertical Inclinometer System

Jika anda berminat untuk membeli alat Ace Instruments Digital Vertical Inclinometer System yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: , , Tag: , , ,

Deskripsi

Digital Vertical Inclinometer System digunakan untuk mensurvei perpindahan horizontal dari dalam casing. Ini digunakan untuk memantau deformasi bawah permukaan tanah di tanah longsor, tanggul, dan bendungan dan di sekitar penggalian dan terowongan yang dalam.

Spesifikasi

Model5481
Applied Sensor2-MEMS Sensor
Measuring Range±30º
Resolution0.005mm/500mm
Digital Inclinometer Probe (Vertical)Rating OutputDigital
Nonlinearity0.02% FSR/ ±10
Repeatability±0.003º
Shock coefficient2000g
Operating temp.min 20 sampai 70ºC
Wheel gage length500mm
System accuracy±2mm / 25m
DimensionØ25.4 x 687mm
Weight1.3kg
MaterialStainless Steel
Water proof1000m H20
AccessoriesCarry bag, Spanner
Control CableOperating temp.min 20 sampai 80ºC
StiffenerØ3mm Kevlar
Outer DiameterØ6.0mm
WireØ0.3mm² x 5C
Max. tensile strength200kg.f
Material of CablePolyurethane rubber
WeightAbout 3.3kg/ 50m
Cable GuideMaterialAlumunium
Weight0.3kg
Applied CasingØ70, Ø85mm casing
Bluetooth reelMaterialPolycarbonate
Dimension350(W)x250(D)x360(H)mm
Status DisplayPower, Bluetooth,Charge
ConvenienceOn/off Switch, Probe Meter, Cable Guide holder
BatteryNi-MH 7.2V
Weight2.0kg
Operation TimeCont' 40Hr
Charging TimeCont' 7Hr
AccessoriesCharger, carry bag

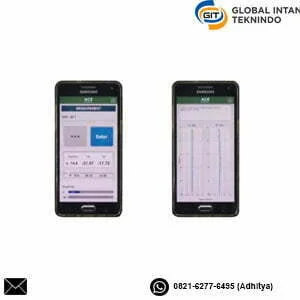

Operating ApplicationApplicationInclinometer Collector
FunctionData Storage
View Data & graph
Import data
Send to e-mail
DeviceAndroid 4.3 of later OS
Smartphone or device
Pc ProgramGeopro (V3.0)
Remote ControlBluetooth Camera shutter for android

Download Katalog
