Deskripsi
● Konverter biasanya dipasang di dinding, dll. Perumahan aluminium, kelas perlindungan IP65.

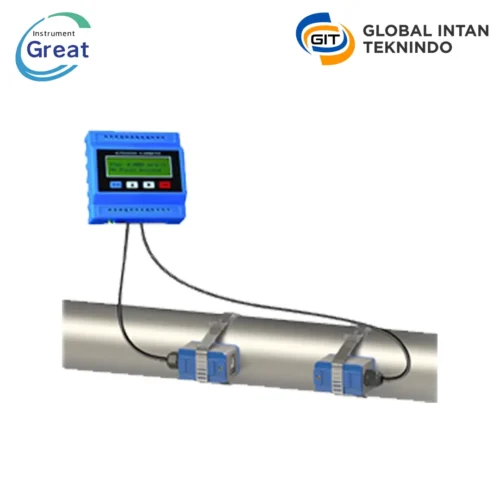

● TUF-2000 dapat bekerja dengan sensor yang berbeda, penjepit, penyisipan, dan jenis inline. Pilih tepat
Sensor sesuai dengan karakter sensor dan situs instalasi Anda.
● Dengan pengukuran panas dengan menghubungkan sensor suhu PT100.
Spesifikasi
Convertor
- Principle Transit- time ultrasonic flowmeter
- Accuracy ±1%
- Operation: 4 keyboards operation
- SignalOutput:
– 1 way 4~ 20mA output, electric resistance 0~ 1K,accuracy0. 1%
– 1 way OCT pulse output( Pulse width 6~ 1000ms,default is 200ms)
– 1 way Relay output
- Signal Input:
– 3 way 4~ 20mA input, accuracy 0. 1%,acquisition signal such as temperature, press and liquid level.
– Connect the temperature transducer Pt100, can finish the heat/energy measurement.
- Data Interface: Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS.
Pipe Installation Condition
- Pipe Material: Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
- Pipe Diameter: 15~ 6000mm
- Straight Pipe: Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.
Measuring Medium
- Type of Liquid: Single liquid can transmit sound wave, such as Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage with small particle content; Oil ( crude oil, lubricating oil, diesel oil, fuel oil, etc. ) ; Chemicals ( alcohol, etc. ) ; Plant effluent; Beverage; Ultra- pure liquids, etc.
- Temperature: – 30~ 160℃
- Turbidity: No more than 10000ppm and less bubble
- Flowrate: 0~±7m/ s
Working Environment
- Temperature: Convertor:- 20~ 60℃;Flow Transducer:- 30~ 160℃
- Humidity: Convertor: 85% RH;Flow Transducer:can measure under water, water depth≤2m(tansducer sealed glue)
Power Supply: DC8~36V or AC10~30V
Power consumption: 1. 5W
Dimension: 95*95*35MM(Convertor)
