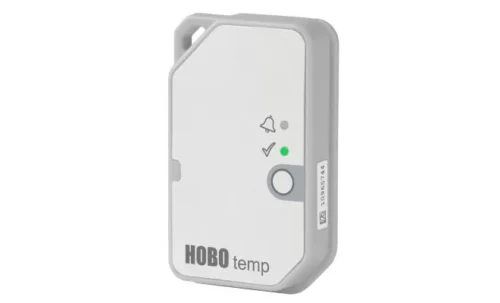

HOBO Temperature Data Logger

Jika anda berminat untuk membeli alat HOBO Temperature Data Logger yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: , , , , , , , ,

Deskripsi

Overview

Pencatat data berkemampuan Bluetooth berbiaya rendah dan tahan percikan air yang mengukur dan mengirimkan data suhu secara nirkabel ke perangkat seluler atau komputer Windows.

Ideal untuk berbagai aplikasi pemantauan dalam ruangan, pencatat data nirkabel mandiri ini memungkinkan Anda mengonfigurasinya dan mengakses data suhu kapan pun ketika berada dalam jarak 100 kaki dari pencatat, tanpa peralatan khusus di luar perangkat seluler atau komputer Windows yang menjalankan aplikasi HOBOconnect.

Aplikasi HOBOconnect gratis dari Onset membuatnya cepat dan mudah untuk melihat grafik suhu, memeriksa status operasional pencatat MX100, mengonfigurasi pemberitahuan alarm, dan berbagi file data.

Features

  • Set up and offload loggers wirelessly from your mobile device or Windows computer
  • Exceptional value for the convenience of a Bluetooth communication logger
  • Splash-proof design enables use in damp environments and spray-down applications
  • Easy to deploy, offload, and share temperature data using the HOBOconnect app
  • Visual alarms on the logger display and mobile app keep you notified of problems
  • Set up and start monitoring in minutes!

Spesifikasi

Temperature Sensor

Range
-30° to 70°C
-22° to 158°F
Accuracy
±1.0°C from -30° to -5°C
±1.8°F from -22° to 23°F
±0.5°C from -5° to 50°C
±0.9°F from 23° to 122°F
±1.0°C from 50° to 70°C
±1.8°F from 122° to 158°F
Resolution
0.04°C
0.072°F
Drift
<0.01°C per year
0.018°F per year
Response Time
6 minutes typical to 90% in open air moving 1 m/s, unmounted

Logger

Logger Operating Range
-30° to 70°C
-22° to 158°F
Radio Power
1 mW
0 dBm
Transmission Range
Approximately 30.5 m line-of-sight
Approximately 100 ft line-of-sight
Wireless Data Standard
Bluetooth Low Energy (Bluetooth Smart)
Logging Rate
1 second to 18 hours
Time Accuracy
±1 minute per month at 25°C
±1 minute per month at 77°F
Battery
CR2450 3V lithium, not replaceable
Battery Life
1 year, typical with logging interval of 1 minute and Bluetooth Always On enabled; 2 years, typical with logging interval of 1 minute and Bluetooth Always On disabled. Faster logging intervals, remaining connected with the app, excessive downloads, and paging may impact battery life.
Memory
30,000 measurements
Full Memory Download Time
Approximately 30 seconds; may take longer the farther the device is from the logger
Dimensions
6.9 x 4.5 x 1.1 cm
2.71 x 1.76 x 0.42 inches
Weight
25.5 g
0.90 oz
Environmental Rating
IP67
CE Compliance Mark
FCC Compliance Mark
Australia New Zealand Compliance Mark

Download Katalog

HOBO® MX100 Temp Logger
