HOBO Davis® 0.2 mm Rain Gauge Smart Sensor

HOBO Davis® 0.2 mm Rain Gauge Smart Sensor

Jika anda berminat untuk membeli alat Davis® 0.2 mm Rain Gauge Smart Sensor yang disediakan oleh Global Intan Teknindo, silahkan anda langsung hubungi kami melalui :

PT. Global Intan Teknindo

Kategori: , , , , , , , , , , , , , , Tag:

Deskripsi

Overview

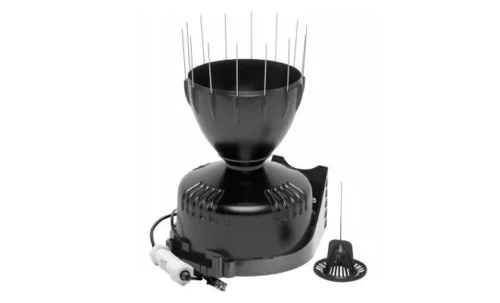

Dilengkapi dengan desain AeroCone® untuk akurasi pengukuran yang lebih baik dalam kondisi angin kencang, sensor pengukur hujan ini terbuat dari plastik ABS yang distabilkan dengan UV untuk memberikan pengukuran curah hujan yang hemat biaya

Features

  • Streamlined design reduces the amount of missed rain capture in windy conditions, resulting in more accurate rainfall data
  • Improved debris screen locks in to ensure it remains in place during high winds
  • 16.5 cm (6.5”) collector opening meets World Meteorological Organization (WMO) guidelines

kompatibel dengan semua stasiun cuaca HOBO.

Spesifikasi

Measurement Range0 to 10.2 cm (0 to 4 in.) per hour, maximum 4,000 tips per logging interval
Accuracy±4.0%, ±1 rainfall count between 0.2 and 50.0 mm (0.01 and 2.0 in.) per hour; ±5.0%, ±1 rainfall count between 50.0 and 100.0 mm (2.0 and 4.0 in.) per hour
Resolution0.01 in. (S-RGC-M002) or 0.2 mm (S-RGF-M002)
Operating Temperature Range0° to 50°C (32° to 122°F), survival -40° to 75°C (-40° to 167°F)
Environmental RatingWeatherproof
HousingUV-stabilized ABS plastic
MechanismTipping spoon with magnetic reed switch pivots on metal shaft
Dimensions16.5 cm opening diameter (6.5 in.) x 24 cm (9.5 in.) high; 214 cm2 (33.2 in.2) collection area
Weight1.2 kg (2.7 lbs)
Bits per Sample12
Number of Data Channels*1
Measurement AveragingNo
Cable Length Available2 m (6.6 ft)
Length of Smart Sensor Network Cable*0.5 m (1.6 ft)
The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
